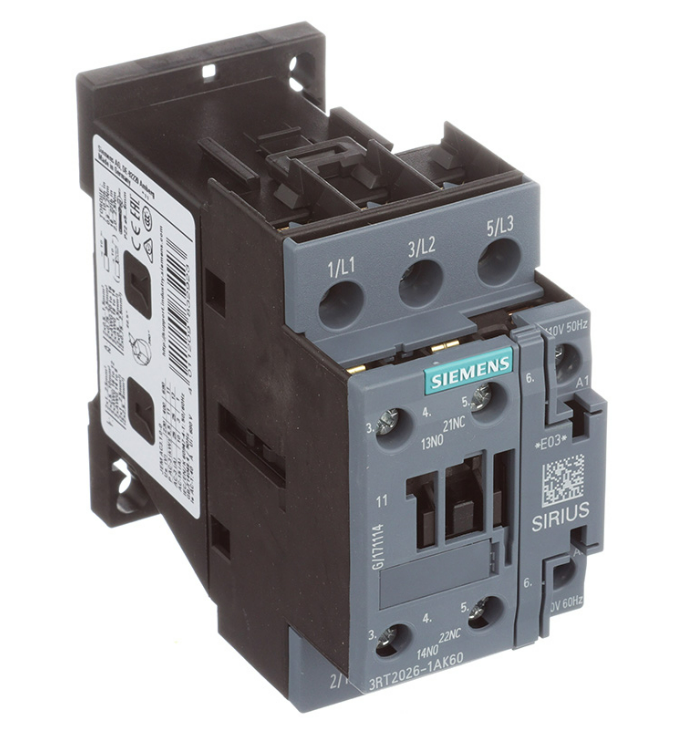

3RT20261AK60 SIEMENS CONTACTOR 3AC 25A 11KW/400V 1NA+1NC

3RT20261AK60 SIEMENS CONTACTOR 3AC 25A 11KW/400V 1NA+1NC

SPECIFICATIONS

• Coil Voltage: 110/120 VAC (50/60 Hz)
• Rated Load Current: 25 A (AC-3)
• Contact Rating: 25 A at 400 VAC
• Power Rating (AC-3): 11 kW at 400 VAC
• Contact Configuration: 3 main poles + 1 NO + 1 NC auxiliary contact
• Frequency: 50/60 Hz
• Maximum Operating Current (other categories): 40 A at 400 VAC-1 / 9 A at 400 VAC-4
• Operating Temperature: –25 °C to +60 °C
• Operating Cycles: Up to 10 000 000 operations
