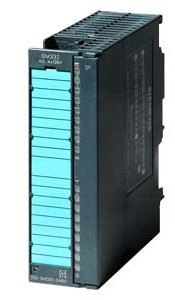

6ES7332-5HF00-0AB0 SIEMENS SIMATIC S7-300, analog output SM 332, isolated, 8 AO, U/I

6ES7332-5HF00-0AB0 SIEMENS SIMATIC S7-300, analog output SM 332, isolated, 8 AO, U/I
diagnostics; resolution 11/12 bits, 40-pole, removing and inserting with active backplane bus possible

SPECIFICATIONS

• Rated value (DC) 24 V
• Reverse polarity protection Yes
• from load voltage L+ (without load), max. 340 mA
• from backplane bus 5 V DC, max. 100 mA
• Power loss, typ. 6 W
• Number of analog outputs 8
• Voltage output, short-circuit protection Yes
• oltage output, short-circuit current, max. 25 mA
• Current output, no-load voltage, max. 18 V
• Resolution with overrange (bit including sign), max. 12 bit; ±10 V, ±20 mA, 4 mA to 20 mA, 1 V to 5 V: 11 bit + sign; 0 V to 10 V, 0 mA to 20 mA: 12 bit
•  Conversion time (per channel) 0.8 ms
• Diagnostic alarm Yes; Parameterizable
•
