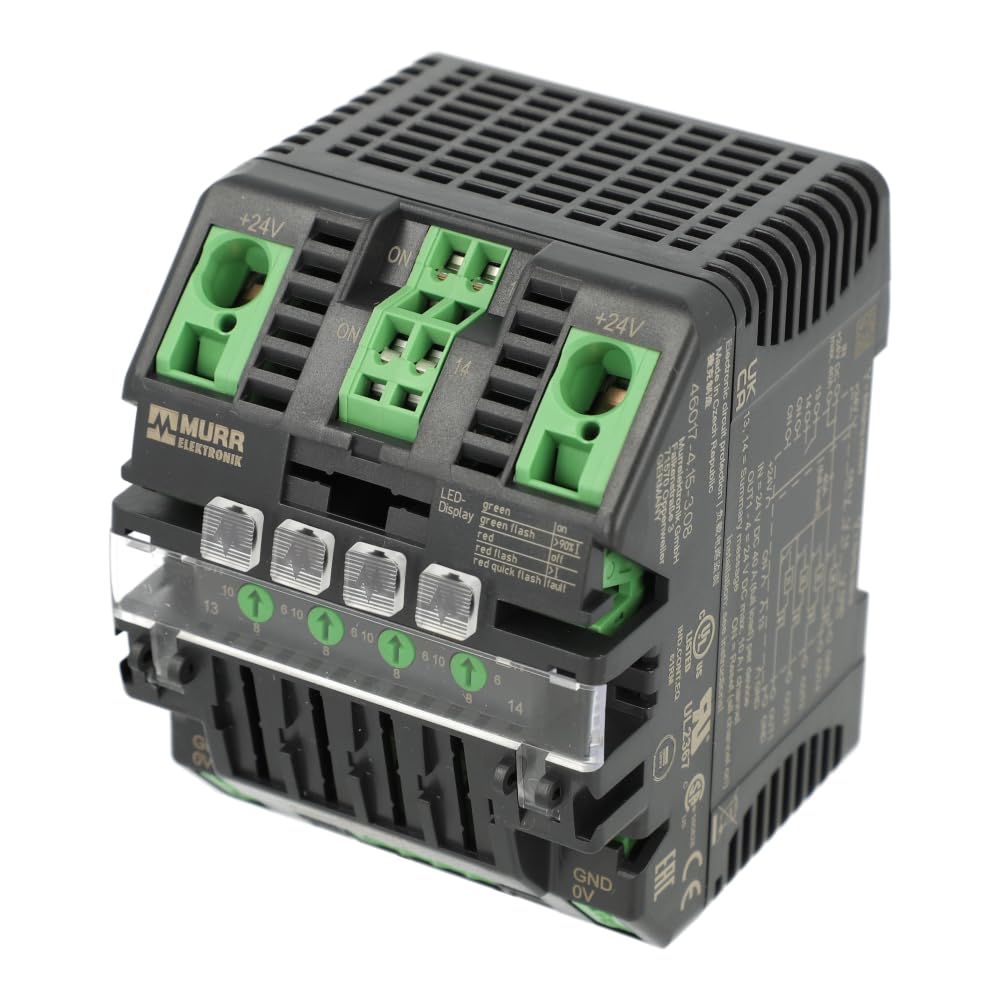

9000-41034-0401000 Murrelektronik MICO 4.10 Electronic Circuit Protection

9000-41034-0401000 Murrelektronik MICO 4.10 Electronic Circuit Protection
The MICO 4.10 is an intelligent 4-channel electronic circuit protection module designed for 24 V DC power distribution systems. It ensures maximum system availability by monitoring currents, detecting overloads or short circuits, and shutting down only the affected channel while keeping other parts operating smoothly. It features adjustable current settings from 4 A to 10 A per channel and includes a group alarm output for remote monitoring.

• Number of Channels: 4 channels
• Input Voltage: 24 V DC (Operating Range: 18…30 V DC)
• Output Voltage: 24 V DC
• Current Adjustments: 4 A, 6 A, 8 A, 10 A (adjustable via sealed rotary switch per channel)
• Total Bridge Current: Max. 40 A
• Inrush Capacity: Max. 20 mF per channel
• Control / Remote Start Input: 10…30 V DC (min. 20 ms)
• Group Alarm Output: Max. 30 V AC/DC, max. 100 mA
• Connection Type: Spring clamp terminals
• Input Terminals: 2× 16 mm²
• Output Terminals: 1× 4 mm² per channel
• Alarm Terminals: 2.5 mm²
• Mounting Type: DIN-rail TH35 (EN 60715)
• Dimensions (H×W×D): 90 × 70 × 80 mm
• Weight: 0.200 kg
