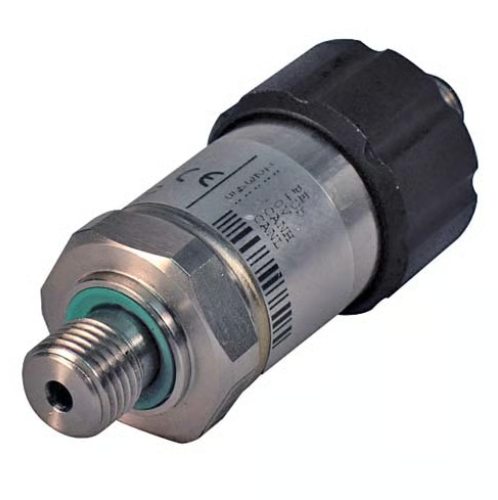

The programmable electronic pressure switch in the series EDS 4400 was specially developed to combine the advantages of a compact, robust and costeffective instrument with the benefits of a programmable pressure switch.

FEATURES

• The EDS 4400 can be easily programmed using the HYDAC HPG 3000 Programming Unit.
• Once the programming unit is disconnected from the EDS 4400, the pressure switch retains all the settings.
• The following parameters can be changed: Switch point, Hysteresis, Switching direction (N/O / N/C) and Switching delay times.
• The EDS 4400 is suitable for high-pressure applications (starting at 40 bar) and has a pressure measurement cell with thin-film strain gauge on a stainless steel membrane.
• An ATEX version of the EDS 4400 is also available for use in potentially explosive atmospheres.

TECHNICAL DATA:

Input data

• Measuring ranges bar: 40, 100, 250, 400, 600, 1000
• Overload pressures bar: 80, 200, 500, 800, 1000, 1600
• Burst pressure bar: 200, 500, 1000, 2000, 2000, 3000
• Mechanical connection: G1/4 A ISO 1179-2
• Tightening torque, recommended: 20 Nm
• Parts in contact with fluid: Mech. connection: Stainless steel and Seal: FKM

Output data
Switching outputs:

• 1 or 2 transistor outputs PNP or NPN Switching current:

PNP: max. 1.2 A with 1 switching output
max. 1 A each with 2 switching outputs
NPN: max. 0.5 A with 1 switching output
max. 0.3 A each with 2 switching outputs

• Switching cycles: > 100 million
• Switch points/hysteresis:

user-programmable with HYDAC
Programming Unit HPG 3000
Switch-on and switch-off delay: 8 .. 2000 ms;

• user-programmable with HYDAC Programming Unit HPG 3000
