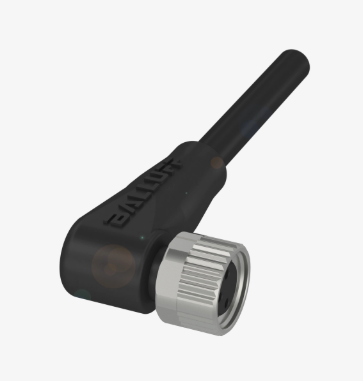

BCC02MM / BCC M323-000-10-001-PX0334-050 BALLUFF CONNECTION CABLE

BCC02MM. BCC M323-0000-10-001-PX0334-050 BALLUFF Sensor cable unshielded

FEATURES:

• Connection: M8x1-Female, angled, 3-pin, A-coded
• Cable: PUR black, 5 m, Drag chain compatible
• Number of conductors: 3
• Conductor cross-section: 0.34 mm²
• Cable temperature, fixed routing: -50…90 °C
• Cable temperature, flexible routing: -25…90 °C
• Operating voltage Ub: 60 VDC / 60 VAC
• Rated current (40 °C): 4.0 A
• IP rating: IP67, IP69K
• Approval/Conformity: CE, cULus, WEEE
