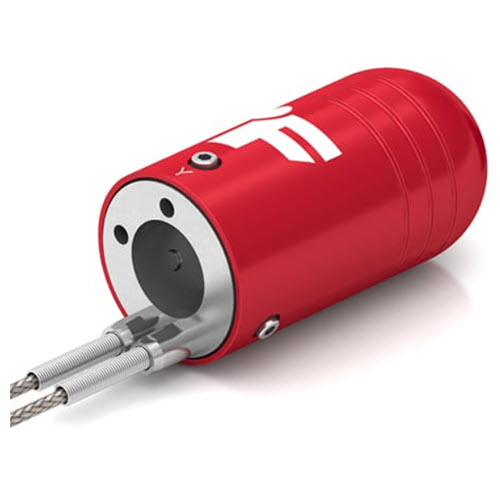

FSH04423 Futek Stick Shift/Gear Shift Knob Load Cell
$0.00
MAU300 , Ch Fx: 100 lb; Ch Fy: 100 lb , Stick Shift Long/Gear Shift Long Knob Load Cell , RoHS Compliant , Material – 2024-T4 , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
Fx-1
|
10
|
Vdc
|
||
|
Fy-1
|
10
|
Vdc
|
|||
|
Shunt Calibration
|
Fx-1
|
60.4
|
kOhm
|
||
|
Fy-1
|
60.4
|
kOhm
|
|||
|
Excitation
|
Fx-1
|
1
|
20
|
Vdc
|
|
|
Fy-1
|
1
|
20
|
Vdc
|
||
|
Input Resistance
|
Fx-1
|
350
|
Ohms nom.
|
||
|
Fy-1
|
350
|
Ohms nom.
|
|||
|
Insulation Resistance
|
Fx-1
|
500
|
Mohms @ 50 Vdc
|
||
|
Fy-1
|
500
|
Mohms @ 50 Vdc
|
|||
|
Safe Overload
|
Fx-1
|
150
|
% of R.O.
|
||
|
Fy-1
|
150
|
% of R.O.
|
|||
|
Capacity
|
Fx-1
|
100
|
lbs
|
||
|
Fy-1
|
100
|
lbs
|
|||
|
Nonlinearity
|
Fx-1
|
-0.25
|
0.25
|
% of R.O.
|
|
|
Fy-1
|
-0.25
|
0.25
|
% of R.O.
|
||
|
Nonrepeatability
|
Fx-1
|
-0.25
|
0.25
|
% of R.O.
|
|
|
Fy-1
|
-0.25
|
0.25
|
% of R.O.
|
||
|
Output Resistance
|
Fx-1
|
350
|
Ohms nom.
|
||
|
Fy-1
|
350
|
Ohms nom.
|
|||
|
Rated Output
|
Fx-1
|
2
|
mV/V nom.
|
||
|
Fy-1
|
2
|
mV/V nom.
|
|||
|
Compensated Temperature
|
Fx-1
|
60
|
160
|
F
|
|
|
Fy-1
|
60
|
160
|
F
|
||
|
Operating Temperature
|
Fx-1
|
-40
|
160
|
F
|
|
|
Fy-1
|
-40
|
160
|
F
|
||
|
Temperature Shift Span
|
Fx-1
|
-0.02
|
0.02
|
% of Load/F
|
|
|
Fy-1
|
-0.02
|
0.02
|
% of Load/F
|
||
|
Temperature Shift Zero
|
Fx-1
|
-0.02
|
0.02
|
% of R.O./F
|
|
|
Fy-1
|
-0.02
|
0.02
|
% of R.O./F
|
||
|
Zero Balance
|
Fx-1
|
-1
|
1
|
% of R.O.
|
|
|
Fy-1
|
-1
|
1
|
% of R.O.
|
