FSH04521 Futek Load Cell TEDS 10Lb

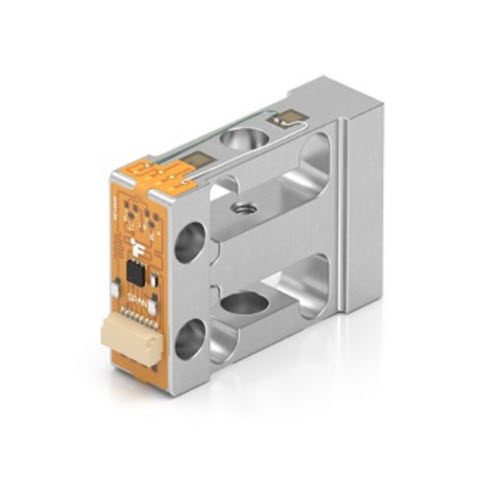

LSM305 , 10 lb , Parallelogram Load Cell with TEDS and PT1000 RTD , RoHS Compliant, Material – 2024-T4 , #10-32-Thread , Overload Protection , 8 position 0.039″ (1.00mm) JST Connector.
Detalles
FSH04521 Futek Load Cell TEDS 10Lb
LSM305 , 10 lb , Parallelogram Load Cell with TEDS and PT1000 RTD , RoHS Compliant, Material – 2024-T4 , #10-32-Thread , Overload Protection , 8 position 0.039″ (1.00mm) JST Connector.
Specifications:
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
1
|
10
|
Vdc
|
||
|
Excitation
|
1
|
1
|
18
|
Vdc
|
|
|
Input Resistance
|
1
|
1400
|
Ohms nom.
|
||
|
Insulation Resistance
|
1
|
500
|
Mohms @ 50 Vdc
|
||
|
Safe Overload
|
1
|
250
|
lbs
|
||
|
Capacity
|
1
|
10
|
lbs
|
||
|
Hysteresis
|
1
|
-0.02
|
0.02
|
% of R.O.
|
|
|
Nonlinearity
|
1
|
-0.02
|
0.02
|
% of R.O.
|
|
|
Nonrepeatability
|
1
|
-0.02
|
0.02
|
% of R.O.
|
|
|
Output Resistance
|
1
|
1000
|
Ohms nom.
|
||
|
Rated Output
|
1
|
2
|
mV/V nom.
|
||
|
Compensated Temperature
|
1
|
60
|
160
|
F
|
|
|
Operating Temperature
|
1
|
-13
|
185
|
F
|
|
|
Temperature Shift Span
|
1
|
-0.005
|
0.005
|
% of Load/F
|
|
|
Temperature Shift Zero
|
1
|
-0.005
|
0.005
|
% of R.O./F
|
|
|
Zero Balance
|
1
|
-3
|
3
|
% of R.O.
|
