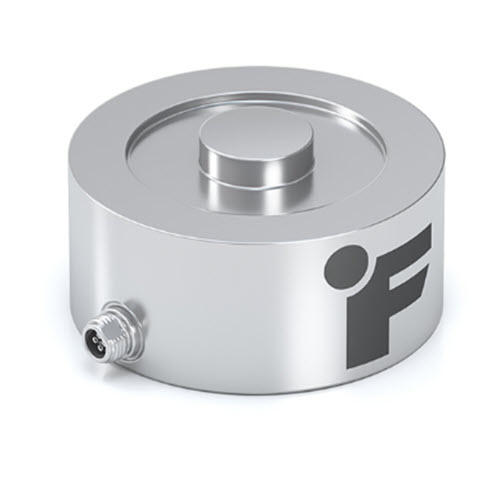

FSH04545 Futek High Capacity Load Button with Threaded/Tapped Holes
$0.00
LLB500 , 30000 lb , Load Button Load Cell , RoHS Compliant , Bottom #6-32 Tapped Holes , Material – 17-4 PH S.S. , 4 Pin Micro Receptacle
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
1
|
10
|
Vdc
|
||
|
Shunt Calibration
|
1
|
100
|
kOhm
|
||
|
Excitation
|
1
|
1
|
18
|
Vdc
|
|
|
Input Resistance
|
1
|
700
|
Ohms nom.
|
||
|
Insulation Resistance
|
1
|
500
|
Mohms @ 50 Vdc
|
||
|
Safe Overload
|
1
|
150
|
% of R.O.
|
||
|
Capacity
|
1
|
30000
|
lbs
|
||
|
Hysteresis
|
1
|
-0.35
|
0.35
|
% of R.O.
|
|
|
Nonlinearity
|
1
|
-0.35
|
0.35
|
% of R.O.
|
|
|
Nonrepeatability
|
1
|
-0.1
|
0.1
|
% of R.O.
|
|
|
Output Resistance
|
1
|
700
|
Ohms nom.
|
||
|
Rated Output
|
1
|
2
|
mV/V nom.
|
||
|
Compensated Temperature
|
1
|
60
|
160
|
F
|
|
|
Operating Temperature
|
1
|
-60
|
200
|
F
|
|
|
Temperature Shift Span
|
1
|
-0.005
|
0.005
|
% of Load/F
|
|
|
Temperature Shift Zero
|
1
|
-0.01
|
0.01
|
% of R.O./F
|
|
|
Zero Balance
|
1
|
-3
|
3
|
% of R.O.
|
Detalles
