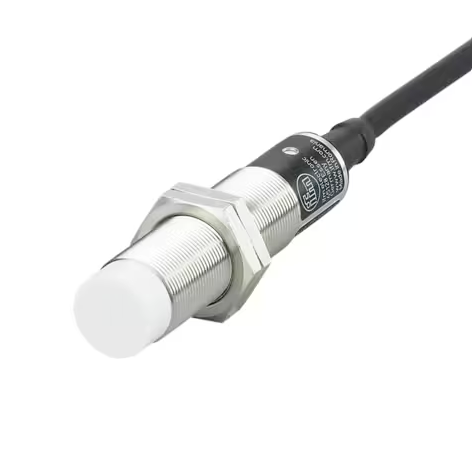

IG0012 (IGA2008-ABOA) IFM ELECTRONIC INDUCTIVE PROXIMITY SENSOR

IG0012 (IGA2008-ABOA) IFM ELECTRONIC INDUCTIVE PROXIMITY SENSOR

SPECIFICATIONS:

• Manufacturer: IFM Electronic
• Model Number: IG0012
• Product ID (Type): IGA2008-ABOA
• Electrical Design: AC/DC, 2-wire technology
• Operating Voltage: 20…250 V AC/DC
• Output Function: Normally Open (NO)
• Sensing Range: 8 mm
• Installation Type: Non-flush mountable
• Housing Design: Threaded barrel, M18 x 1
• Housing Material: Plated brass (White bronze plating)
• Sensor Length: 80 mm
• Switching Frequency: 25 Hz (AC) / 50 Hz (DC)
• Connection Type: 2-meter PVC cable (2 × 0.5 mm²)
• Protection Rating: IP67 (dust and water immersion protection)
• Ambient Temperature: -25 °C to 80 °C
• Status Indicator: Yellow LED
