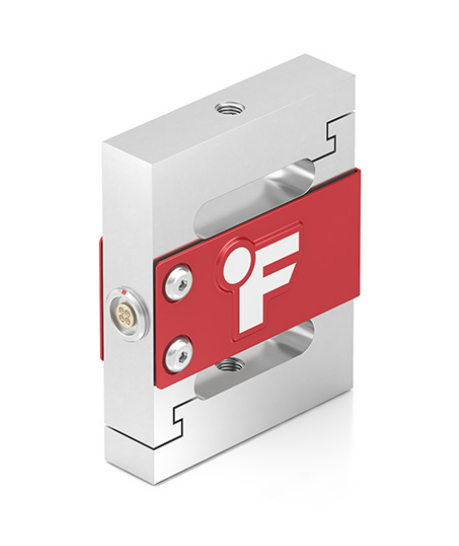

LSB302-FSH04206 S-Beam Tension and Compression Load Cell

LSB302-FSH04206 Tension & Compression Load Cell

Description:

Structurally, a force sensor load cell is made of a metal body (also called flexure) to which foil strain gauges are bonded.
The sensor body is usually made of aluminum or stainless steel, which gives the sensor two important characteristics:

• (1) provides the sturdiness to withstand high loads and
• (2) has the elasticity to minimally deform and return to its original shape when the force is removed.

Features:

• 50 lb
• RoHS Compliant
• Material – 2024-T4
• M6x1-Thread
• Overload Protection
• 4 Pin Lemo Receptacle
• EGG.0B.304.CLL
