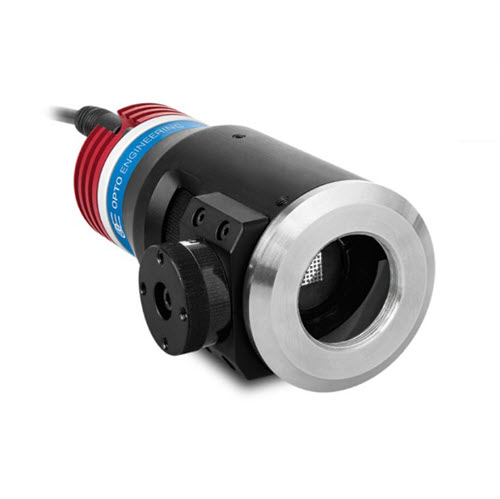

LTPRSMHP3W-R OPTO Engineering Scheimpflug LED pattern projector 3W, red, 625 nm
$0.00
| Lighting specifications | ||
| Active area | (mm x mm) | 8 x 8 |
| Max pattern tilt | (deg) | 45 |
| Light color, peak wavelength | red, 625 nm | |
| Spectral FWHM | (nm) | 20 |
| Illuminance (1) | (klux) | 9 |
| Electrical specifications | ||
| Operating mode (2) | Continuous and strobe | |
| Supply voltage (3) | (V) | 12-24 |
| Power consumption | (W) | 4.5 |
| LED forward voltage typical (max) (4) | (V) | 2.4 (3) |
| Max LED forward current (5) | (mA) | 720 |
| Max pulse current (6) | (mA) | 2000 |
| Estimated MTBF (7) | (hours) | > 100000 |
| Connector | M8 | |
| Cables | CB244P1500 included | |
| Mechanical specifications | ||
| Mount | C | |
| Phase adjustment | Yes | |
| Diameter | (mm) | 38.5 |
| Length | (mm) | 90.8 |
| Mass | (g) | 153 |
| Environmental specifications | ||
| Operating temperature | (°C) | 0-40 |
| Storage temperature | (°C) | 0-50 |
| Operating relative humidity | (%) | 20-85, non condensing |
| Installation | Indoor use only | |
| Eye safety | ||
| Risk group according to CEI EN 62471:2010 | Exempt | |
