Ideal for compact, efficient designs: The miniature size of the product family MC5 to MC75 delivers very short overall lengths and low return forces.

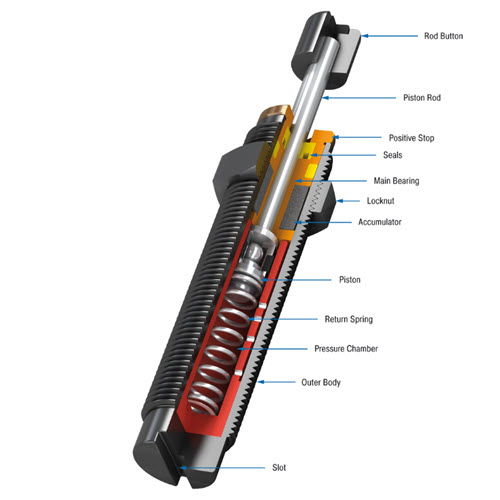

The outer body of each shock, produced from one solid piece, is filled with temperature stable oil, offers a continuous outer body thread including a supplied lock nut and also has an integrated positive stop. These maintenance-free hydraulic machine elements from ACE are ready for immediate installation. A wide range of energy absorption and effective weight are further benefits in these compact units. Self-compensating shock absorbers react to changing energy conditions, without adjustment.

These self-compensating miniature shock absorbers are perfectly suited to use in applications such as rotary actuators, automation, light industrial manufacturing, material handling and packaging equipment, medical, electronics and robotics.


TECHNICAL DATA

Energy capacity 20 in-lbs/cycle Energy capacity 200,000 in-lbs/h Effective weight min. 10 lbs Effective weight max. 30 lbs Return Force min. 0.8 lbs Return Force max. 1.7 lbs Return Time 0.3 s Side Load Angle max. 2 ° Impact velocity range 0.5 ft/sec to 8 ft/sec Operating temperature range 14 °F to 150 °F Mounting In any position Positive stop Integrated Material Outer body, Accessories: Steel corrosion-resistant coating; Piston rod: Hardened stainless steel; Rod end button: Steel, MC25 and MC75: Elastomer Insert; Locknut: Steel, MC5 and MC9: Aluminium Damping medium Oil, temperature stable   TECHNICAL DATA Energy capacity 20 in-lbs/cycle Energy capacity 200,000 in-lbs/h Effective weight min. 10 lbs Effective weight max. 30 lbs Return Force min. 0.8 lbs Return Force max. 1.7 lbs Return Time 0.3 s Side Load Angle max. 2 ° Impact velocity range 0.5 ft/sec to 8 ft/sec Operating temperature range 14 °F to 150 °F Mounting In any position Positive stop Integrated Material Outer body, Accessories: Steel corrosion-resistant coating; Piston rod: Hardened stainless steel; Rod end button: Steel, MC25 and MC75: Elastomer Insert; Locknut: Steel, MC5 and MC9: Aluminium Damping medium Oil, temperature stable   SALES DATA Weight 0.044 lbs F and R Weight 0.0 lbs S Weight 0.0 lbs Customs tariff number 84879059 Country of origin US
