Stroke1.91 inchA max.7.96 inchL10.52 inchL2108 inchMM33x1.5 inchd11.18 inchd21.15 inch
Industrial Shock Absorbers
MC3350M-3-V4A
Optimum corrosion protection
Self-Compensating, Stainless Steel
Energy capacity 2,920 in-lbs/cycle
Stroke 1.91 inch

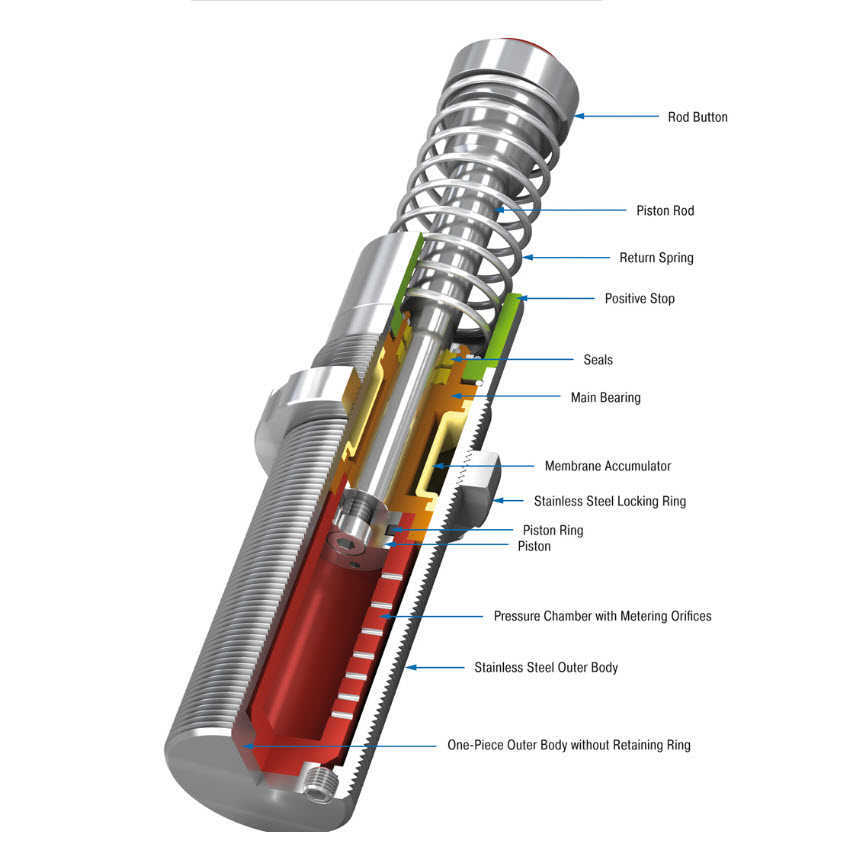

Just like the standard product family, the MAGNUM stainless steel models are distinguished by their robust, modern sealing technology, high energy absorption in a compact design, integrated positive stop and a wide damping range. Equipped with a PUR head, they are available in thread sizes M33x1.5 to M64x2 with damping strokes up to 3.94 in. Self-compensating shock absorbers react to changing energy conditions, without adjustment.
TECHNICAL DATA
|
Energy capacity 2,920 in-lbs/cycle Energy capacity 760,000 in-lbs/h Effective weight min. 460 lbs Effective weight max. 1,840 lbs Hardness -3 Return Force max. 30.35 lbs Return Force min. 10.12 lbs Return Time 0.06 s Side Load Angle max. 3 ° Impact velocity range 0.5 ft/sec to 16.5 ft/sec. Other speeds on request. Operating temperature range 10 °F to 150 °F. Other temperatures on request. Mounting In any position Positive stop Integrated Material Outer body, Main bearing, Accessories, Locking ring: Stainless steel (1.4404, AISI 316L); Piston rod: Hard chrome plated steel; Rod end button: Stainless steel (1.4404, AISI 316L) with elastomer insert; Return spring: Stainless steel Damping medium Special oil NSF-H1 approved |
