MC4550M-4-LT ACE Controls Industrial Shock Absorbers
$0.00
_GT_TECHdraw-F_RGB-L_EN(-US).jpg)
| Stroke | 1.91 inch |
| A max. | 7.69 inch |
| L2 | 4.72 inch |
| M | M45x1.5 inch |
| d1 | 1.65 inch |
| d2 | 1.38 inch |
Industrial Shock Absorbers
MC4550M-4-LT
Extreme temperature
Self-Compensating, use at -58 °F to +150 °F
Energy capacity 6,550 in-lbs/cycle
Stroke 1.91 inch
These ready-to-install machine elements are recommended even under the most unfavorable conditions. Additional benefits are their robust, innovative sealing technology, high energy absorption in a compact design, fixed positive stop and a wide damping range. Self-compensating shock absorbers react to changing energy conditions, without adjustment.
TECHNICAL DATA
|

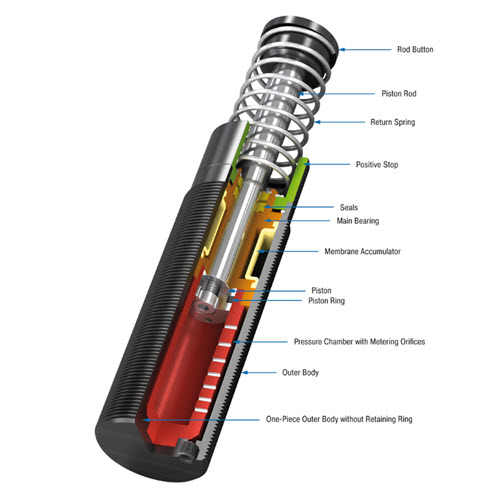

Energy capacity 6,550 in-lbs/cycle Energy capacity 1,000,000 in-lbs/h Energy capacity with oil recirculation 2,200,000 in-lbs/h Energy capacity with air/oil tank 1,700,000 in-lbs/h Effective weight min. 3,900 lbs Effective weight max. 15,600 lbs Hardness -4 Return Force max. 32.2 lbs Return Force min. 15.1 lbs Return Time 0,08 s Return Time at -58 °F 0.16 s Side Load Angle max. 3 ° Impact velocity range 0.5 ft/sec to 16.5 ft/sec. Other speeds on request. Operating temperature range -58 °F to 150 °F Mounting In any position Positive stop Integrated Material Outer body: Nitride hardened steel; Piston rod: Hard chrome plated steel; Rod end button: Hardened steel and corrosion-resistant coating; Return spring: Zinc plated or plastic-coated steel; Accessories: Steel with black oxide finish or nitride hardened Damping medium Low temperature hydraulic oil
NOTEA noise reduction of 3 dB to 7 dB is possible when using the special impact button (PP). SAFETY INFORMATIONExternal materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Do not paint the shock absorbers due to heat emission. ON REQUESTNickel-plated, increased corrosion protection, mounting inside air cylinders or other special options are available on request. Adjustable HT and LT shock absorbers.
SALES DATAWeight F and R Weight S Weight Country of origin Customs tariff number
|
