MC4575M-0-V4A ACE Controls
$0.00
MC4575M-0-V4A ACE Controls
Industrial Shock Absorbers. Optimum corrosion protection. Self-Compensating, Stainless Steel. Energy capacity 10,000 in-lbs/cycle Stroke 2.91 inch.
On Request:
Special oils, other special options and special accessories are available on request.
Detalles
MC4575M-0-V4A ACE Controls
Industrial Shock Absorbers. Optimum corrosion protection. Self-Compensating, Stainless Steel. Energy capacity 10,000 in-lbs/cycle Stroke 2.91 inch.

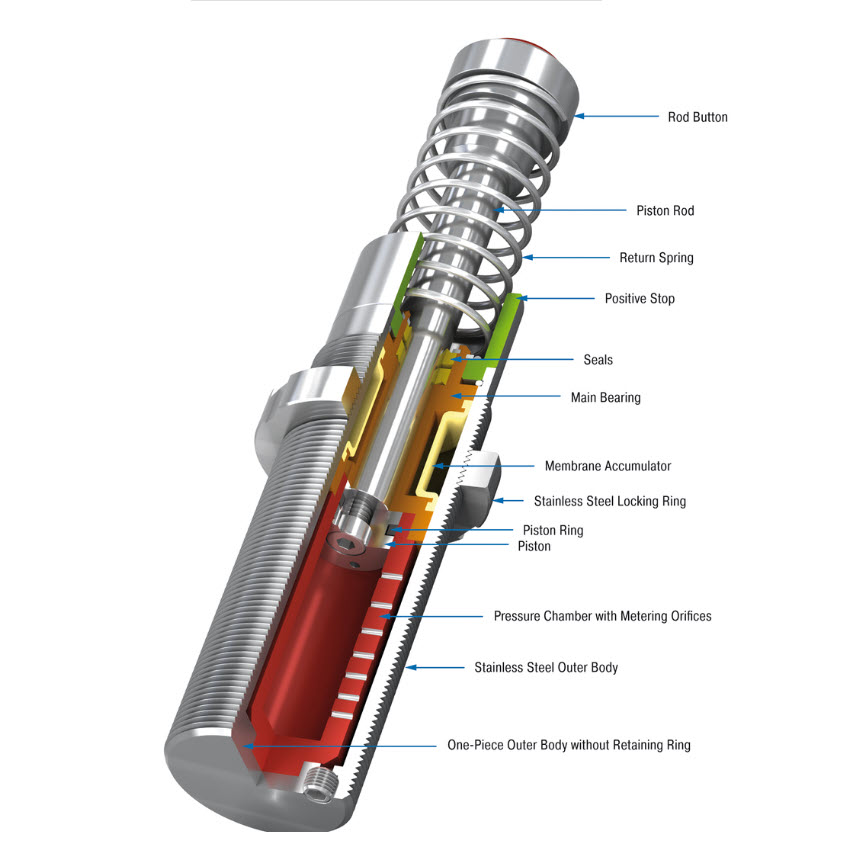

The latest damper technology in stainless steel: The self-compensating industrial shock absorbers MC33 to MC64 from the tried-and-tested and popular MAGNUM range is also available with all outer components made from stainless steel, material AISI 316L (except piston rod). They are filled in the factory with special oil, which meets the permit conditions (NSF-H1) for the food industry.
Note:
Impact button for noise reduction included. For emergency use only applications and for continous use (with additional cooling) it is sometimes possible to exceed the published max. capacity ratings. In this case, please consult ACE.
Safety Information:
External materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Do not paint the shock absorbers due to heat emission.
Technical data:
|
| Stroke | 2.91 inch |
| A max. | 10.45 inch |
| L1 | 0.76 inch |
| L2 | 5.72 inch |
| M | M45x1.5 inch |
| d1 | 1.65 inch |
| d2 | 1.65 inch |
