MC600H ACE Controls Miniature Shock Absorbers
$0.00
| Stroke | 1.00 inch |
| M | 1-12 UNF inch |
Miniature Shock Absorbers
MC600H
Exceptionally high endurance and with the lowest resetting force
Self-Compensating, Rolling Diaphragm Technology
Energy capacity 1,200 in-lbs/cycle
Stroke 1.00 inch

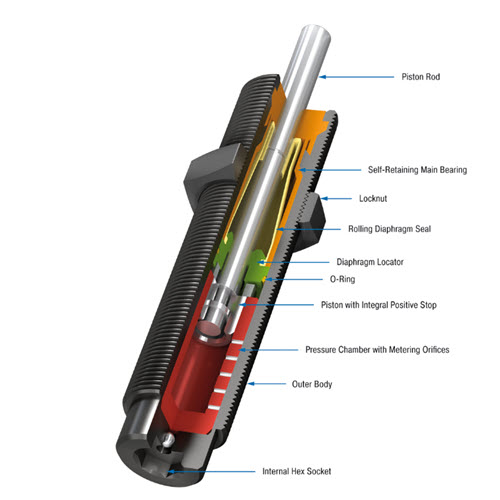

The rolling diaphragm delivers very low return forces for these maintenance-free, ready-to-install absorbers. An integrated positive stop and progressive energy capacities, with a wide range of effective weight, make these miniature shock absorbers a winner. Furthermore, the use of a side load adapter allows impact angles of up to 25°. Stainless steel options are available for greater environmental compatibility. Self-compensating shock absorbers react to changing energy conditions, without adjustment.
These self compensating miniature shock absorbers are capable of universal mounting even inside a cylinder. These shocks are ideal for use in multitude of applications including material handling equipment, packaging equipment, medium robotics and machine tools.
TECHNICAL DATA
|
Energy capacity 1,200 in-lbs/cycle Energy capacity 600,000 in-lbs/h Effective weight min. 250 lbs Effective weight max. 2,500 lbs Return Force min. 1.0 lbs Return Force max. 2.0 lbs Return Time 0.6 s Side Load Angle max. 2 ° Impact velocity range 0.25 ft/sec to 1.15 ft/sec Operating temperature range 32 °F to 150 °F Mounting In any position Positive stop Integrated Material Outer body, Accessories: Steel corrosion-resistant coating; Main bearing: Plastic; Piston rod: Hardened stainless steel (1.4125, AISI 440C); Rolling diaphragm: EPDM Damping medium Oil, temperature stable
NOTEIf precise end position datum is required consider use of the stop collar type AH. SAFETY INFORMATIONExternal materials in the surrounding area can attack the rolling seal and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Suitable for use in pressure chambers up to 101.53 psi. ON REQUESTIncreased corrosion protection. Special threads or other special options.
SALES DATAWeight F and R Weight S Weight Customs tariff number Country of origin |
