MC600MH2-V4A ACE Controls Miniature Shock Absorbers
$0.00
Stroke1.0 inchMM25x1.5 inch
Miniature Shock Absorbers
MC600MH2-V4A
Exceptionally high endurance with stainless steel corrosion protection

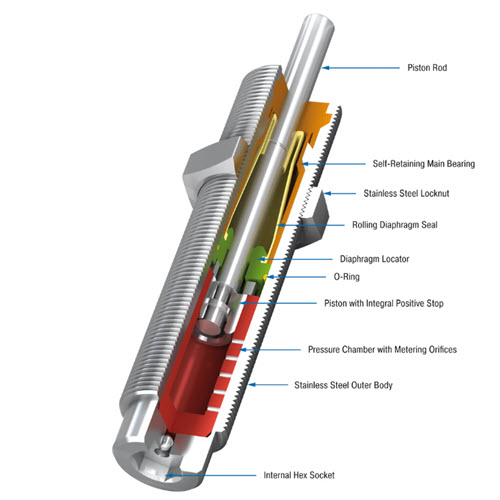

Self-Compensating, Stainless Steel, Rolling Diaphragm Technology
Energy capacity 1,200 in-lbs/cycle
Stroke 1.0 inch
Thanks to perfectly progressive maximum energy absorption and effective weight potential, their use is augmented even further by the stainless steel outer body and a complete range of stainless accessories (AISI 316L). Self-compensating shock absorbers react to changing energy conditions, without adjustment.
These self-compensating miniature stainless steel shock absorbers are used in medical and electro-technology, as well as marine, packaging, and chemical applications. Shocks can be filled with food-grade oil for food processing applications.
TECHNICAL DATA
Energy capacity 1,200 in-lbs/cycle Energy capacity 600,000 in-lbs/h Effective weight min. 880 lbs Effective weight max. 5,000 lbs Return Force min. 1.0 lbs Return Force max. 2.0 lbs Return Time 0.6 s Side Load Angle max. 2 ° Impact velocity range 0.22 ft/sec to 19.7 ft/sec. Other speeds on request. Operating temperature range 32 °F to 150 °F Mounting In any position Positive stop Integrated Material Outer body, Locknut, Accessories: Stainless steel (1.4404, AISI 316L); Main bearing: Plastic; Piston rod: Hardened stainless steel (1.4125, AISI 440C); Rolling diaphragm: EPDM Damping medium Oil, temperature stable SALES DATAWeight F and R Weight S Weight Customs tariff number Country of origin |
