MC6450M-2 ACE Controls Industrial Shock Absorbers 16550 in-lbs
$0.00
MC6450M-2 ACE CONTROLS SHOCK ABSORBERS

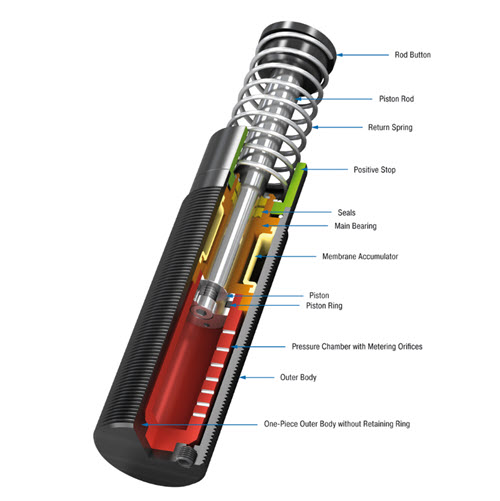

Material Outer body:
- Nitride hardened steel;
Piston rod:
- Hard chrome plated steel;
Rod end button:
- Hardened steel and corrosion-resistant coating;
Return spring:
- Zinc plated or plastic-coated steel;
Accessories:
- Steel with black oxide finish or nitride hardened.
Detalles
MC6450M-2 ACE CONTROLS SHOCK ABSORBERS
The combination of the latest sealing technology, annealed guide bearing and integrated positive stop make these self-compensating shock absorbers from ACE’S MAGNUM range so successful. Also, users benefit from the longer service life of the products, even in the most difficult environments. High energy absorption in a compact design and a wide damping range lead to huge advantages in practice. Useful For many industrial Aplications.
TECHNICAL DATA:
- Energy capacity 16,550 in-lbs/cycle
- Energy capacity 1,300,000 in-lbs/h
- Energy capacity with oil recirculation 3,400,000 in-lbs/h
- Energy capacity with air/oil tank 2,600,000 in-lbs/h
- Effective weight min. 1,020 lbs
- Effective weight max. 4,080 lbs
- Hardness -2
- Return Force max. 34.9 lbs
- Return Force min. 20.1 lbs
- Return Time 0.12 s
- Side Load Angle max. 4 °
- Impact velocity range 0.5 ft/sec to 16.5 ft/sec. Other speeds on request.
- Operating temperature range 10 °F to 150 °F. Other temperatures on request.
- Mounting In any position
- Positive stop Integrated
- Damping medium Automatic Transmission Fluid (ATF)
