MI-DL0113 DL1133-AACABE0GHKDC-612mm INTERROLL
$0.00
DRUM MOTOR DL SERIES – DL 0113 A lightweight motor for light-duty applications. The DL 0113 is a cost-efficient belt […]
Detalles

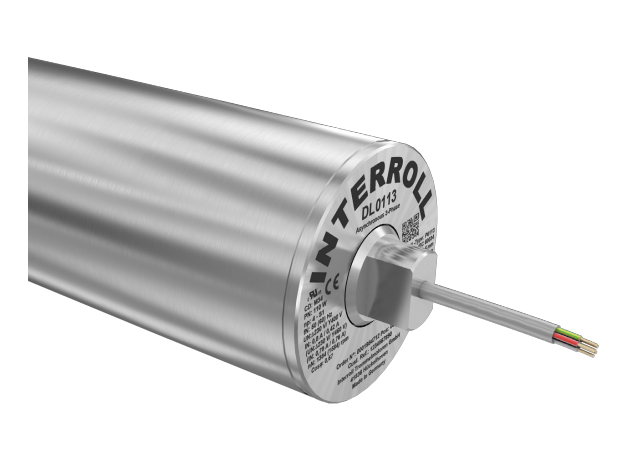

DRUM MOTOR DL SERIES – DL 0113
A lightweight motor for light-duty applications. The DL 0113 is a cost-efficient belt drive for small to medium, dynamic belt conveyor applications and is ideal for small
infeed conveyors, packaging equipment, and transfer conveyors.
Technical data:
- Length: 612 mm
- Net weigth: 12.52 kg
- Insulation class of motor windings: Class F, IEC 34 (VDE 0530)
- Voltage: 230/400 V ±5 % (IEC 34/38)
- Frequency: 50 Hz
- Shaft seal: NBR
- Shaft seal, external: Deflection seal, NBR
- Protection rate: IP66 (with grease nipple)
- Thermal controller: Bi-metal switch
- Operating mode: S1
- Ambient temperature, 3-phase motor: +5 to +40 °C. Low temperature ranges on request
- Ambient temperature, 1-phase motor +5 to +40 °C
Design variants and accessories
- Laggings: Lagging for friction drive belts
- Oils: Food-grade oils (NSF H1)
- Certificate: cULus safety certificates
- Accessories: Deflection drums; conveyor rollers; mounting brackets; cables; inverters
- Options: Static balancing
