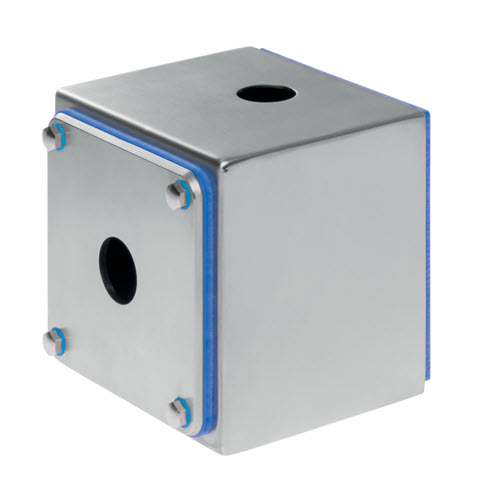

NBGLC11.1 Schmersal Stainless steel enclosure 103025900

Stainless steel enclosure
for application in food producing machinery
Protection class IP69K
Variable sizes with up to five holes for command devices
No additional mounting accessories such as spacers required thanks to flange seal under the enclosure

Ordering data

Product type description

NBGLC11.1

Article number (order number)

103025900

EAN (European Article Number)

4030661525839

eCl@ss number, version 12.0

27-37-12-05

eCl@ss number, version 11.0

27-37-12-05

eCl@ss number, version 9.0

27-37-12-05

ETIM number, version 7.0

EC000200

ETIM number, version 6.0

EC000200

General data

Versions

Assembly housing

Housing material

Stainless steel (V2A)

Colour of the bottom part of the enclosure

Silver

Colour of the sealing

Blue

Gross weight

786 g

General data – Features

Number of command positions

1

Number of cable glands

1

Mechanical data

Position of the cable gland

at the front

Mechanical data – Connection technique

Diameter of the cable gland

20.3 mm

Mechanical data – Dimensions

Width

100 mm

Height

94 mm

Depth

100 mm

Ambient conditions

Degree of protection

IP67

IP69K

Ambient temperature

-25 … +80 °C
