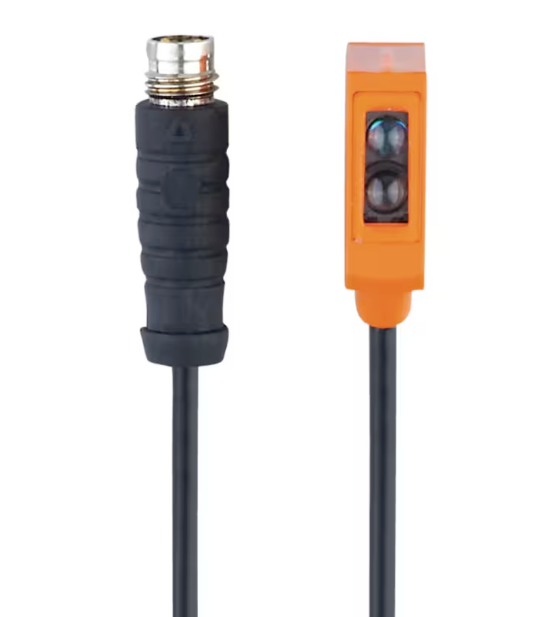

O8H222 IFM Diffuse Reflection Sensor with Background Suppression

O8H222 IFM Diffuse Reflection Sensor with Background Suppression
Miniature rectangular photoelectric sensor designed for factory automation and industrial applications with severe space constraints (robotics, feeding, and handling systems).

• Full Technical Code: O8H-HPKG/IO-Link/0,30M/AS/4P
• Operating Principle: Diffuse reflection sensor with background suppression
• Sensing Range: 1…80 mm (Adjustable range via IO-Link: 10…80 mm)
• Type of Light: Visible red light (Wave length: 633 nm)
• Max. Light Spot Diameter: 4 mm

Electrical and Output Data:

• Operating Voltage: 10…30 V DC
• Current Consumption: 20 mA (at 24 V)
• Electrical Design / Output: PNP
• Output Function: Light-on / Dark-on mode (programmable)
• Switching Frequency (DC): 1000 Hz
• Max. Output Current: 1000 mA
• Protections: Short-circuit and reverse polarity protection
