PMCN150MH2 ACE Controls Miniature Shock Absorbers

PMCN150MH2 ACE Controls Miniature Shock Absorbers

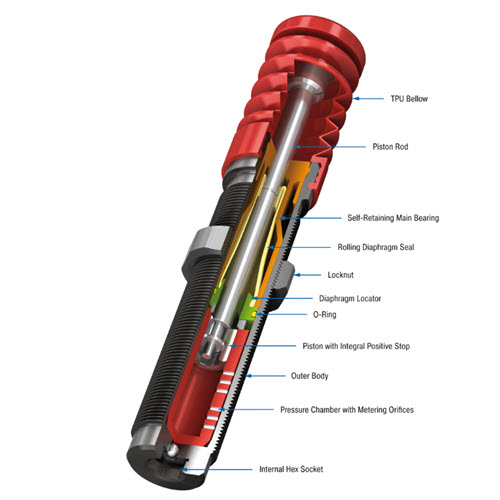

Hermetically sealed: The shock absorbers from the ACE Protection family PMCN have a compact, perfectly sealed cap as a special feature.

This protection bellows, made of TPU (thermoplastic polyurethane), safely encapsulates the proven ACE rolling diaphragm from the outside environment. Aggressive cutting, lubricating and cleaning agents don’t stand a chance and the function of the maintenance-free, ready-to-install shock absorber is retained. They are also available in full stainless steel.

The PMCN range is a good alternative to the SP type air bleed collar if no compressed air is available on the machine or system.

Reliable protection against aggressive environments including fluids and abrasives, these self-compensating miniature shock absorbers are the first choice where conventional dampers wear out too quickly. Use them in harsh environments where cutting, cooling or cleaning agents can attack.

Short Description:

• Self-Compensating, Rolling Diaphragm Technology, TPU Bellow
• Energy capacity 175 in-lbs/cycle
• Stroke 0.5 inch MM14x1.5 inch

 Technical data:

• Energy capacity 175 in-lbs/cycle
• Energy capacity 300,000 in-lbs/h
• Effective weight min. 155 lbs
• Effective weight max. 440 lbs
• Return Force min. 1.80 lbs
• Return Force max. 17.98 lbs
• Return Time 1.0 s
• Side Load Angle max. 4 °
• Impact velocity range 0.22 ft/sec to 19.7 ft/sec. Other speeds on request.
• Operating temperature range 32 °F to 150 °F
• Mounting In any position
• Positive stop Integrated
• Material Outer body: Steel corrosion-resistant coating; Main bearing: Plastic; Piston rod: Hardened stainless steel (1.4125, AISI 440C); Bellow: TPU, steel insert: Stainless steel (1.4404/1.4571, AISI 316L/316Ti); Rolling diaphragm: EPDM
• Damping medium Oil, temperature stable

NOTE: Final preliminary test must be done on the application.

SAFETY INFORMATION: Do not paint the shock absorbers due to heat emission.

SALES DATA:

• Weight: 0.148 lbs
• F and R Weight: 0.0 lbs
• S Weight: 0.0 lbs
• Customs tariff number: 84879059
• Country of origin: DE
