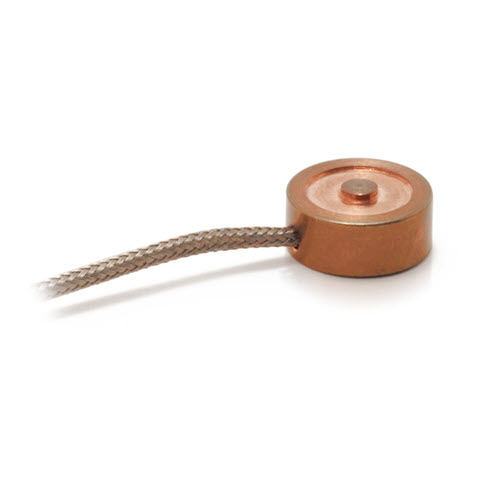

QSH01133 Futek Non-Ferrous/Non-Magnetic Compression Load Button Load Cell QLA299 , 250 lb
$0.00
QLA299 , 250 lb , Non-Ferrous/Non-Magnetic Load Cell , Material – Beryllium Copper , 30 Awg 4 Conductor Braided Shielded Teflon Cable , 21″ Long w/ JST PHR-5 Connector
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
1
|
5
|
Vdc
|
||
|
Excitation
|
1
|
1
|
7
|
Vdc
|
|
|
Input Resistance
|
1
|
350
|
Ohms nom.
|
||
|
Safe Overload
|
1
|
150
|
% of R.O.
|
||
|
Capacity
|
1
|
250
|
lbs
|
||
|
Hysteresis
|
1
|
-0.25
|
0.25
|
% of R.O.
|
|
|
Nonlinearity
|
1
|
-0.25
|
0.25
|
% of R.O.
|
|
|
Output Resistance
|
1
|
350
|
Ohms nom.
|
||
|
Rated Output
|
1
|
1.8
|
2.2
|
mV/V nom.
|
|
|
Compensated Temperature
|
1
|
60
|
160
|
F
|
|
|
Operating Temperature
|
1
|
160
|
F
|
||
|
Temperature Shift Zero
|
1
|
-0.02
|
0.02
|
% of R.O./F
|
|
|
Zero Balance
|
1
|
-3
|
3
|
% of R.O.
|
