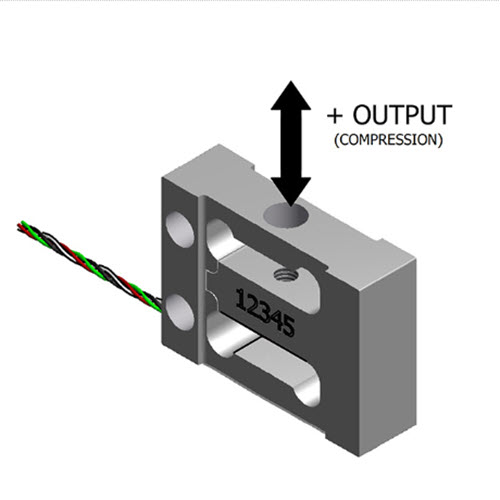

QSH01576 Futek Parallelogram Load Cell QLA357 , 5 lb
$0.00
QLA357 , 5 lb , Parallelogram Beam Load Cell , Material – 2024-T4 , #10-32-Thread , Overload Protection , RoHS Lead Free, 29 Awg 4 Conductor Spiral Teflon Cable , 6 inch Long
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
1
|
10
|
Vdc
|
||
|
Excitation
|
1
|
1
|
18
|
Vdc
|
|
|
Input Resistance
|
1
|
1000
|
Ohms nom.
|
||
|
Safe Overload
|
1
|
250
|
lbs
|
||
|
Capacity
|
1
|
5
|
lbs
|
||
|
Hysteresis
|
1
|
-0.1
|
0.1
|
% of R.O.
|
|
|
Nonlinearity
|
1
|
-0.1
|
0.1
|
% of R.O.
|
|
|
Nonrepeatability
|
1
|
-0.1
|
0.1
|
% of R.O.
|
|
|
Output Resistance
|
1
|
1000
|
Ohms nom.
|
||
|
Rated Output
|
1
|
1.8
|
2.2
|
mV/V nom.
|
|
|
Compensated Temperature
|
1
|
60
|
160
|
F
|
|
|
Operating Temperature
|
1
|
160
|
F
|
||
|
Temperature Shift Span
|
1
|
-0.005
|
0.005
|
% of Load/F
|
|
|
Temperature Shift Zero
|
1
|
-0.005
|
0.005
|
% of R.O./F
|
|
|
Zero Balance
|
1
|
-2
|
2
|
% of R.O.
|
