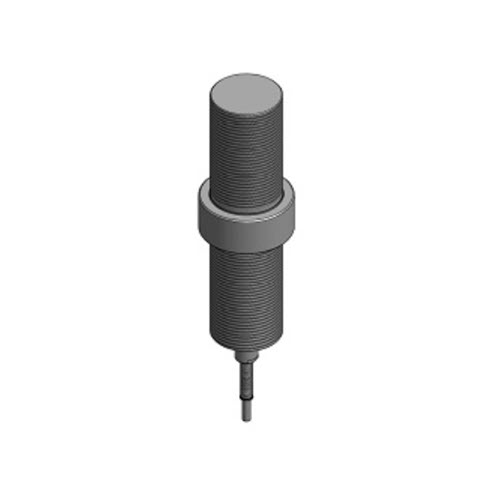

QSH01588 futek Threaded In Line Load Cell LCM550, 5000 lb
$0.00
LCM550, 5000 lb, Heavy Duty Threaded Rod Load Cell, IP67 Rated, 17-4 PH S.S., 1 1/2-12 Thread, 28 Awg 6 Conductor Braided Shielded Poly Cable, Axial Cable Exit Out of Bottom, 1 ft Long w/ 8 Pin Binder Male Plug 99-5171-00-08 (IP67 rated)
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
1
|
10
|
Vdc
|
||
|
Excitation
|
1
|
1
|
18
|
Vdc
|
|
|
Input Resistance
|
1
|
350
|
Ohms nom.
|
||
|
Insulation Resistance
|
1
|
500
|
Mohms @ 50 Vdc
|
||
|
Safe Overload
|
1
|
300
|
% of R.O.
|
||
|
Capacity
|
1
|
5000
|
lbs
|
||
|
Hysteresis
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
|
Nonlinearity
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
|
Nonrepeatability
|
1
|
-0.1
|
0.1
|
% of R.O.
|
|
|
Output Resistance
|
1
|
350
|
Ohms nom.
|
||
|
Output Symmetry
|
1
|
-5
|
5
|
% of R.O.
|
|
|
Rated Output
|
1
|
1
|
mV/V nom.
|
||
|
Compensated Temperature
|
1
|
60
|
160
|
F
|
|
|
Operating Temperature
|
1
|
-45
|
200
|
F
|
|
|
Temperature Shift Span
|
1
|
-0.005
|
0.005
|
% of Load/F
|
|
|
Temperature Shift Zero
|
1
|
-0.005
|
0.005
|
% of R.O./F
|
|
|
Zero Balance
|
1
|
-5
|
5
|
% of R.O.
|
