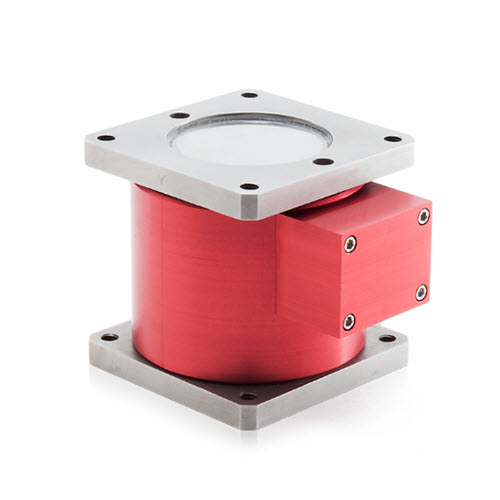

QSH01644 Futek Custom Tri-Axial Force/Torque Load Cell QMA135 , Fz: 300 N ; Fy: 1200 N ; Mz: 50 N-m
$0.00
QMA135 , Fz: 300 N ; Fy: 1200 N ; Mz: 50 N-m , Tri-Axial Pitch/Yaw/Thrust 3DOF Load Cell , Material – 17-4 PH S.S. , M6x1-Thread , 10 Pin Lemo receptacle EGG.1B.310
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
Mz-1
|
10
|
Vdc
|
||
|
Fy-1
|
10
|
Vdc
|
|||
|
Fz-1
|
10
|
Vdc
|
|||
|
Excitation
|
Mz-1
|
1
|
18
|
Vdc
|
|
|
Fy-1
|
1
|
18
|
Vdc
|
||
|
Fz-1
|
1
|
18
|
Vdc
|
||
|
Input Resistance
|
Mz-1
|
350
|
Ohms nom.
|
||
|
Fy-1
|
350
|
Ohms nom.
|
|||
|
Fz-1
|
350
|
Ohms nom.
|
|||
|
Safe Overload
|
Mz-1
|
150
|
% of R.O.
|
||
|
Fy-1
|
150
|
% of R.O.
|
|||
|
Fz-1
|
150
|
% of R.O.
|
|||
|
Capacity
|
Mz-1
|
50
|
N-m
|
||
|
Fy-1
|
1200
|
N
|
|||
|
Fz-1
|
300
|
N
|
|||
|
Hysteresis
|
Mz-1
|
-1
|
1
|
% of R.O.
|
|
|
Fy-1
|
-1
|
1
|
% of R.O.
|
||
|
Fz-1
|
-1
|
1
|
% of R.O.
|
||
|
Nonlinearity
|
Mz-1
|
-1
|
1
|
% of R.O.
|
|
|
Fy-1
|
-1
|
1
|
% of R.O.
|
||
|
Fz-1
|
-1
|
1
|
% of R.O.
|
||
|
Nonrepeatability
|
Mz-1
|
-0.25
|
0.25
|
% of R.O.
|
|
|
Fy-1
|
-0.25
|
0.25
|
% of R.O.
|
||
|
Fz-1
|
-0.25
|
0.25
|
% of R.O.
|
||
|
Output Resistance
|
Mz-1
|
350
|
Ohms nom.
|
||
|
Fy-1
|
350
|
Ohms nom.
|
|||
|
Fz-1
|
350
|
Ohms nom.
|
|||
|
Rated Output
|
Mz-1
|
2
|
mV/V nom.
|
||
|
Fy-1
|
1
|
mV/V nom.
|
|||
|
Fz-1
|
1
|
mV/V nom.
|
|||
|
Compensated Temperature
|
Mz-1
|
60
|
160
|
F
|
|
|
Fy-1
|
60
|
160
|
F
|
||
|
Fz-1
|
60
|
160
|
F
|
||
|
Operating Temperature
|
Mz-1
|
-40
|
180
|
F
|
|
|
Fy-1
|
-40
|
180
|
F
|
||
|
Fz-1
|
-40
|
180
|
F
|
||
|
Temperature Shift Span
|
Mz-1
|
-0.02
|
0.02
|
% of Load/F
|
|
|
Fy-1
|
-0.02
|
0.02
|
% of Load/F
|
||
|
Fz-1
|
-0.02
|
0.02
|
% of Load/F
|
||
|
Temperature Shift Zero
|
Mz-1
|
-0.02
|
0.02
|
% of R.O./F
|
|
|
Fy-1
|
-0.02
|
0.02
|
% of R.O./F
|
||
|
Fz-1
|
-0.02
|
0.02
|
% of R.O./F
|
||
|
Zero Balance
|
Mz-1
|
-3
|
3
|
% of R.O.
|
|
|
Fy-1
|
-3
|
3
|
% of R.O.
|
||
|
Fz-1
|
-3
|
3
|
% of R.O.
|
