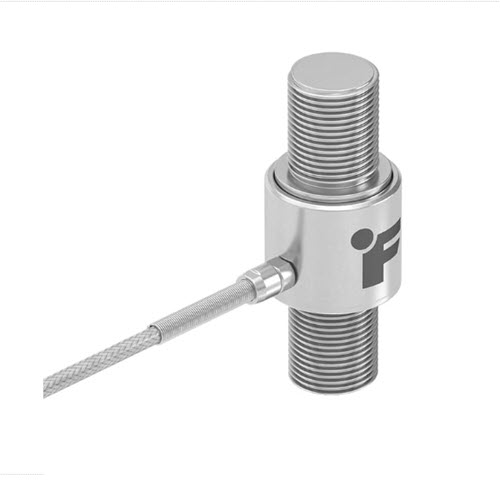

QSH01679 Futek Miniature Threaded In Line Load Cell LCM375 , 10000 lb
$0.00
LCM375 , 10000 lb , Fatigue Rated Miniature Inline Threaded Tension/Compression Load Cell , M16x2-Thread , Matched Output , Water Resistant to IP65 , Material – 17-4 PH S.S. , 28 Awg 4 Conductor Braided Shielded PVC Cable , 10 ft Long
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
1
|
10
|
Vdc
|
||
|
Shunt Calibration
|
1
|
60.4
|
kOhm
|
||
|
Excitation
|
1
|
1
|
18
|
Vdc
|
|
|
Input Resistance
|
1
|
350
|
Ohms nom.
|
||
|
Insulation Resistance
|
1
|
500
|
Mohms @ 50 Vdc
|
||
|
Safe Overload
|
1
|
150
|
% of R.O.
|
||
|
Capacity
|
1
|
10000
|
lbs
|
||
|
Hysteresis
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
|
Nonlinearity
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
|
Nonrepeatability
|
1
|
-0.1
|
0.1
|
% of R.O.
|
|
|
Output Resistance
|
1
|
350
|
Ohms nom.
|
||
|
Rated Output
|
1
|
1.995
|
2.005
|
mV/V nom.
|
|
|
Compensated Temperature
|
1
|
-40
|
221
|
F
|
|
|
Operating Temperature
|
1
|
-60
|
221
|
F
|
|
|
Temperature Shift Span
|
1
|
-0.02
|
0.02
|
% of Load/F
|
|
|
Temperature Shift Zero
|
1
|
-0.005
|
0.005
|
% of R.O./F
|
|
|
Zero Balance
|
1
|
-5
|
5
|
% of R.O.
|
