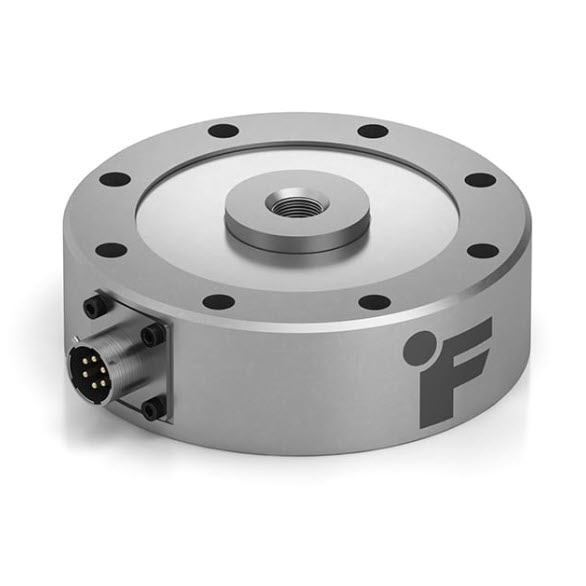

QSH01690 Futek Fatigue Rated Pancake Load Cell LCF451 , 20000 N
$0.00
LCF451 , 20000 N , Fatigue Rated Low Profile Universal Pancake Load Cell , Material – 17-4 PH S.S. , 5/8-18-Thread , Fatigue Rated , w/ Compression Only Amplified 4-20 mA Analog Output , 6 Pin Bendix Receptacle , PT02E-10-6P
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
1
|
18
|
Vdc
|
||
|
Excitation
|
1
|
16
|
24
|
Vdc
|
|
|
Safe Overload
|
1
|
150
|
% of R.O.
|
||
|
Capacity
|
1
|
20000
|
N
|
||
|
Hysteresis
|
1
|
-0.2
|
0.2
|
% of R.O.
|
|
|
Nonlinearity
|
1
|
-0.1
|
0.1
|
% of R.O.
|
|
|
Nonrepeatability
|
1
|
-0.02
|
0.02
|
% of R.O.
|
|
|
Rated Output
|
1
|
4
|
20
|
mA
|
|
|
Compensated Temperature
|
1
|
60
|
160
|
F
|
|
|
Operating Temperature
|
1
|
-13
|
185
|
F
|
|
|
Temperature Shift Span
|
1
|
-0.01
|
0.01
|
% of Load/F
|
|
|
Temperature Shift Zero
|
1
|
-0.01
|
0.01
|
% of R.O./F
|
|
|
Zero Balance
|
1
|
3.9
|
4.1
|
mA
|
