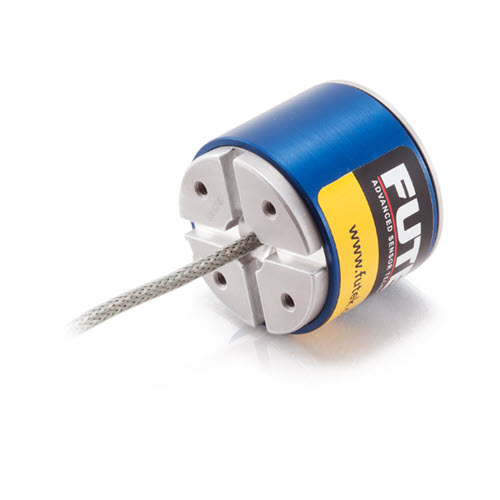

QSH01765 Futek Custom Side Force Load Cell QLA359 , 15 lb
$0.00
QLA359 , 15 lb , Custom Side/Shear Force Load Cell w/ OVerload Protection & Axial Cable Exit , 28 Awg, 4 Conductor Braided Shielded PVC Cable Exiting Out of Bottom , 3 ft Long
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
1
|
10
|
Vdc
|
||
|
Shunt Calibration
|
1
|
432
|
kOhm
|
||
|
Excitation
|
1
|
1
|
15
|
Vdc
|
|
|
Input Resistance
|
1
|
2220
|
Ohms nom.
|
||
|
Insulation Resistance
|
1
|
500
|
Mohms @ 50 Vdc
|
||
|
Safe Overload
|
1
|
150
|
% of R.O.
|
||
|
Capacity
|
1
|
15
|
lbs
|
||
|
Hysteresis
|
1
|
-0.1
|
0.1
|
% of R.O.
|
|
|
Nonlinearity
|
1
|
-0.1
|
0.1
|
% of R.O.
|
|
|
Nonrepeatability
|
1
|
-0.05
|
0.05
|
% of R.O.
|
|
|
Output Resistance
|
1
|
2000
|
Ohms nom.
|
||
|
Rated Output
|
1
|
1.5
|
mV/V nom.
|
||
|
Compensated Temperature
|
1
|
32
|
160
|
F
|
|
|
Operating Temperature
|
1
|
-40
|
200
|
F
|
|
|
Temperature Shift Span
|
1
|
-0.01
|
0.01
|
% of Load/F
|
|
|
Temperature Shift Zero
|
1
|
-0.01
|
0.01
|
% of R.O./F
|
|
|
Zero Balance
|
1
|
-2
|
2
|
% of R.O.
|
