QSH01830 Futek Through Hole Load Cell w/ Integrated Amplifier 15klbQLA392 , 15000 lb
$0.00

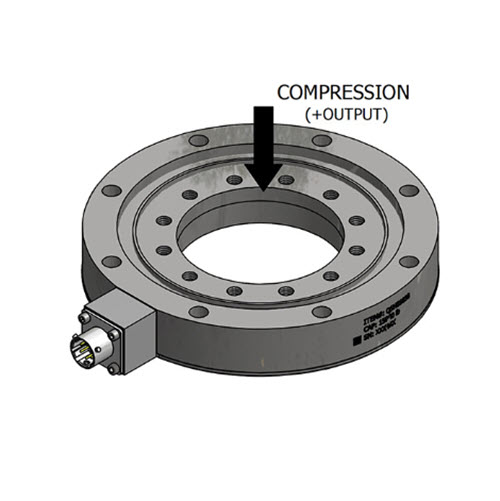

QLA392 , 15000 lb , Flange Mount Thru Hole Compression Load Cell , 2.91″ [74 mm] ID w/ M6x1 Threads x 6.2″ [157.5 mm] x 1.02″ [26 mm] H , Material 17-4 PH S.S. , w/ Integrated Amplifier 4-16 mA , Bendix PT02E-10-6P
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
1
|
24
|
Vdc
|
||
|
Excitation
|
1
|
16
|
24
|
Vdc
|
|
|
Input Resistance
|
1
|
700
|
Ohms nom.
|
||
|
Insulation Resistance
|
1
|
500
|
Mohms @ 50 Vdc
|
||
|
Safe Overload
|
1
|
300
|
% of R.O.
|
||
|
Capacity
|
1
|
15000
|
lbs
|
||
|
Hysteresis
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
|
Nonlinearity
|
1
|
-1
|
1
|
% of R.O.
|
|
|
Nonrepeatability
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
|
Output Resistance
|
1
|
700
|
Ohms nom.
|
||
|
Rated Output
|
1
|
12
|
mA
|
||
|
Compensated Temperature
|
1
|
60
|
160
|
F
|
|
|
Operating Temperature
|
1
|
-13
|
185
|
F
|
|
|
Temperature Shift Span
|
1
|
-0.02
|
0.02
|
% of Load/F
|
|
|
Temperature Shift Zero
|
1
|
-0.02
|
0.02
|
% of R.O./F
|
|
|
Zero Balance
|
1
|
3.9
|
4.1
|
mA
|
