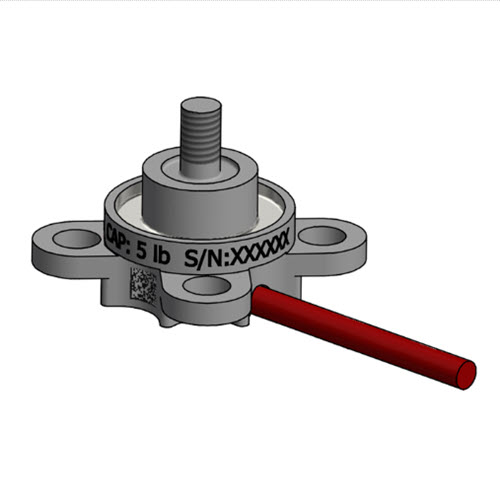

QSH02052 Futek Sub-Miniature Custom Loadcell with Integrated Bellow and Customer PlateQLA416 , 5 lb
$0.00
QLA416 , 5 lb , Sub-Miniature Male Threaded Load Cell , M3x0.5-Thread , Vacuum or IP68 Submersible O-Ring Groove , 9.5 mm H x 14 mm OD , RoHS Lead Free , Hard Anodized Aluminum , 29 Awg 4 Conductor Braided Cable, 10 ft Long
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
1
|
5
|
Vdc
|
||
|
Shunt Calibration
|
1
|
100
|
kOhm
|
||
|
Excitation
|
1
|
1
|
7
|
Vdc
|
|
|
Input Resistance
|
1
|
350
|
Ohms nom.
|
||
|
Insulation Resistance
|
1
|
500
|
Mohms @ 50 Vdc
|
||
|
Safe Overload
|
1
|
200
|
% of R.O.
|
||
|
Capacity
|
1
|
5
|
lbs
|
||
|
Hysteresis
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
|
Nonlinearity
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
|
Nonrepeatability
|
1
|
-0.1
|
0.1
|
% of R.O.
|
|
|
Output Resistance
|
1
|
350
|
Ohms nom.
|
||
|
Rated Output
|
1
|
1
|
mV/V nom.
|
||
|
Compensated Temperature
|
1
|
100
|
248
|
F
|
|
|
Operating Temperature
|
1
|
-60
|
248
|
F
|
|
|
Temperature Shift Span
|
1
|
-0.02
|
0.02
|
% of Load/F
|
|
|
Temperature Shift Zero
|
1
|
-0.01
|
0.01
|
% of R.O./F
|
|
|
Zero Balance
|
1
|
-5
|
5
|
% of R.O.
|
Detalles
