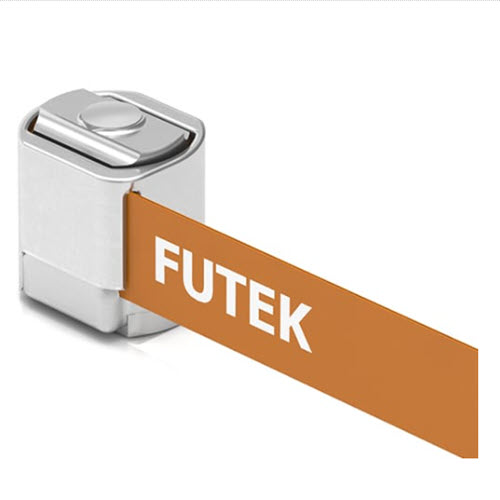

QSH02214 Futek Nano Load Button Load Cell QLA424 , 30 lb
$0.00
QLA424 , 30 lb , Micro Nano Load Button Load Cell , 0.154″ [3.91 mm] OD x 0.167″ [4.24 mm] H , Welded Packaging , Radial Cable Exit , 2 in Long
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
CHANNEL | MIN | TYP | MAX | UNIT | |
---|---|---|---|---|---|
Calibration Excitation
|
1
|
2
|
Vdc
|
||
Excitation
|
1
|
1
|
5
|
Vdc
|
|
Input Resistance
|
1
|
1000
|
Ohms nom.
|
||
Insulation Resistance
|
1
|
500
|
Mohms @ 50 Vdc
|
||
Safe Overload
|
1
|
150
|
% of R.O.
|
||
Capacity
|
1
|
30
|
lbs
|
||
Hysteresis
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
Nonlinearity
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
Nonrepeatability
|
1
|
-0.2
|
0.2
|
% of R.O.
|
|
Output Resistance
|
1
|
1000
|
Ohms nom.
|
||
Rated Output
|
1
|
1.5
|
mV/V nom.
|
||
Compensated Temperature
|
1
|
60
|
160
|
F
|
|
Operating Temperature
|
1
|
-60
|
200
|
F
|
|
Temperature Shift Span
|
1
|
-0.02
|
0.02
|
% of Load/F
|
|
Temperature Shift Zero
|
1
|
-0.03
|
0.03
|
% of R.O./F
|
Detalles
