QSH02229 Futek Donut/Through Hole Load Cell LTH500 , 3000 lb
$0.00

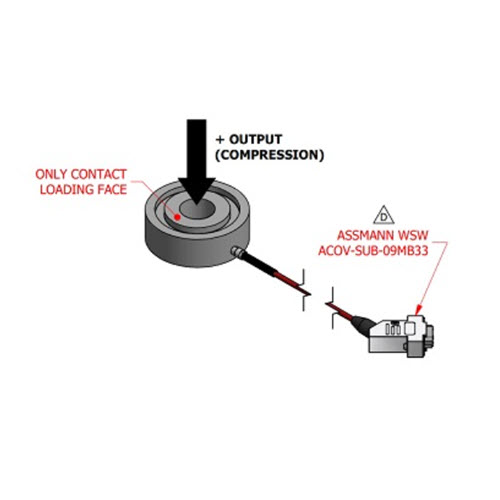

LTH500 , 3000 lb , Thru Hole Donut Load Cell , 1″ [25.4 mm] ID , Vacuum Compatible/Low Outgassing , Material – 17-4 PH S.S. , RoHS Compliant , 26 Awg Teflon Cable , 18.3″ [0.46 m] Long to Female DB9 Receptacle with 45 Degree Shell
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNEL | MIN | TYP | MAX | UNIT | |
---|---|---|---|---|---|
Calibration Excitation
|
1
|
10
|
Vdc
|
||
Shunt Calibration
|
1
|
100
|
kOhm
|
||
Excitation
|
1
|
1
|
18
|
Vdc
|
|
Input Resistance
|
1
|
700
|
Ohms nom.
|
||
Insulation Resistance
|
1
|
500
|
Mohms @ 50 Vdc
|
||
Safe Overload
|
1
|
150
|
% of R.O.
|
||
Capacity
|
1
|
3000
|
lbs
|
||
Hysteresis
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
Nonlinearity
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
Nonrepeatability
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
Output Resistance
|
1
|
700
|
Ohms nom.
|
||
Rated Output
|
1
|
2
|
mV/V nom.
|
||
Compensated Temperature
|
1
|
60
|
160
|
F
|
|
Operating Temperature
|
1
|
-13
|
194
|
F
|
|
Temperature Shift Span
|
1
|
-0.005
|
0.005
|
% of Load/F
|
|
Temperature Shift Zero
|
1
|
-0.005
|
0.005
|
% of R.O./F
|
|
Zero Balance
|
1
|
-2
|
2
|
% of R.O.
|
