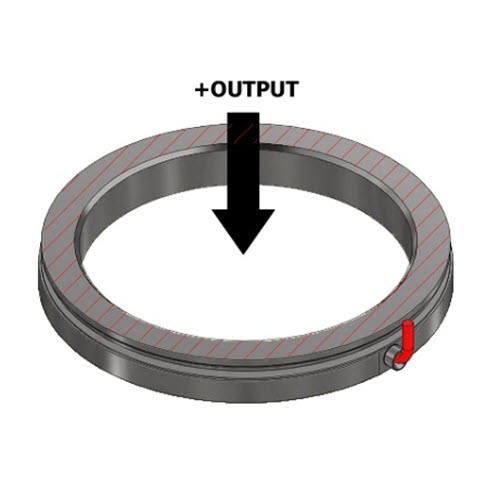

QSH02262 Futek Custom Donut/Through Hole Load Cell QLA429 , 5000 lb
$0.00
QLA429 , 5000 lb , Custom Thin Thru Hole/Donut Load Cell , Material – 17-4 PH S.S. , Non-RoHS , 2.25″ [57.2 mm] ID x 2.67″ [67.9 mm] OD x 0.33″ [8.4 mm] H , 29 Awg 4 Conductor Spiral Shielded Teflon , 10 ft Long, Submersed in Kerosene
pecifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
1
|
7
|
Vdc
|
||
|
Shunt Calibration
|
1
|
780
|
kOhm
|
||
|
Excitation
|
1
|
1
|
10
|
Vdc
|
|
|
Input Resistance
|
1
|
2000
|
Ohms nom.
|
||
|
Insulation Resistance
|
1
|
500
|
Mohms @ 50 Vdc
|
||
|
Safe Overload
|
1
|
150
|
% of R.O.
|
||
|
Capacity
|
1
|
5000
|
lbs
|
||
|
Hysteresis
|
1
|
-5
|
5
|
% of R.O.
|
|
|
Nonlinearity
|
1
|
-5
|
5
|
% of R.O.
|
|
|
Nonrepeatability
|
1
|
-5
|
5
|
% of R.O.
|
|
|
Output Resistance
|
1
|
2000
|
Ohms nom.
|
||
|
Rated Output
|
1
|
0.8
|
mV/V nom.
|
||
|
Compensated Temperature
|
1
|
60
|
160
|
F
|
|
|
Operating Temperature
|
1
|
-60
|
200
|
F
|
|
|
Temperature Shift Span
|
1
|
-0.02
|
0.02
|
% of Load/F
|
|
|
Temperature Shift Zero
|
1
|
-0.02
|
0.02
|
% of R.O./F
|
|
|
Zero Balance
|
1
|
-5
|
5
|
% of R.O.
|
Detalles
