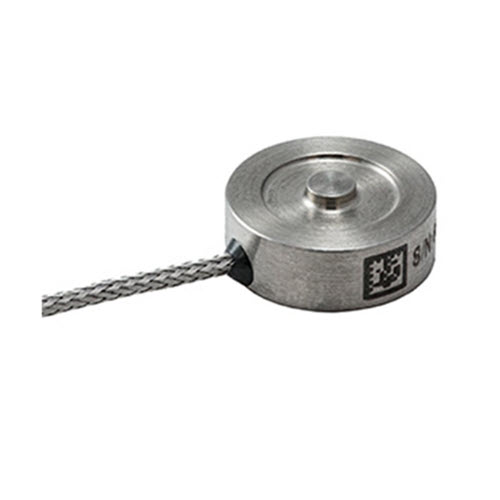

QSH02344 Futek Custom Subminiature Load ButtonQLA387 , 500 lb [2220 N]
$0.00
QLA387 , 500 lb [2220 N] , Subminiature Load Button Load Cell , 0.5 in [1.3 mm] OD x 0.2 in [5.08 mm] H , 17-4 S.S. , 1000 Ohm Low Power , RoHS Compliant , 34 Awg 4 Conductor Braided Shielded Cable, Teflon Conductors , 10 ft [3 m] Long
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
1
|
5
|
Vdc
|
||
|
Excitation
|
1
|
1
|
7
|
Vdc
|
|
|
Input Resistance
|
1
|
1000
|
Ohms nom.
|
||
|
Insulation Resistance
|
1
|
500
|
Mohms @ 50 Vdc
|
||
|
Safe Overload
|
1
|
% of R.O.
|
|||
|
Capacity
|
1
|
500
|
lbs
|
||
|
Hysteresis
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
|
Nonlinearity
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
|
Nonrepeatability
|
1
|
-0.5
|
0.5
|
% of R.O.
|
|
|
Output Resistance
|
1
|
1000
|
Ohms nom.
|
||
|
Rated Output
|
1
|
1.5
|
mV/V nom.
|
||
|
Compensated Temperature
|
1
|
60
|
160
|
F
|
|
|
Operating Temperature
|
1
|
-60
|
200
|
F
|
|
|
Temperature Shift Span
|
1
|
-0.02
|
0.02
|
% of Load/F
|
|
|
Temperature Shift Zero
|
1
|
-0.01
|
0.01
|
% of R.O./F
|
|
|
Zero Balance
|
1
|
-5
|
5
|
% of R.O.
|
Detalles
