SC190M-3 ACE Controls Miniature Shock Absorbers
$0.00
_M_GT_TECHdraw-F_RGB-L_US.jpg)
Stroke0.63 inchMM14x1.5 inch
Miniature Shock Absorbers
SC190M-3
Long stroke and soft impact
Self-Compensating, Soft-Contact
Energy capacity 225 in-lbs/cycle
Stroke 0.63 inch

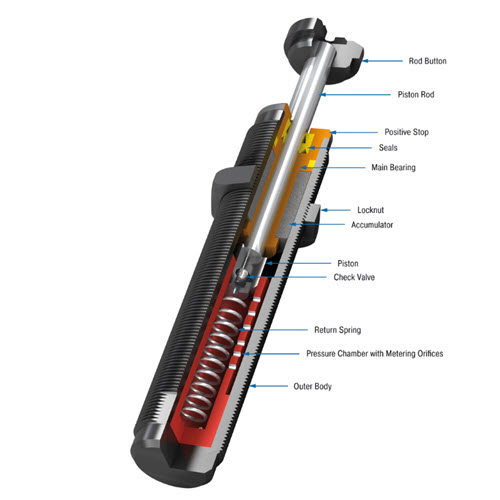

These maintenance-free, ready-to-install hydraulic machine elements are equipped with an integrated positive stop. The use of side load adapter allows impact angles of up to 25°. Thanks to the designed overlapping effective weight ranges, these dampers cover an effective load range of 3 lbs. to 4,400 lbs! Self-compensating shock absorbers react to changing energy conditions, without adjustment.
These miniature self-compensating shock absorbers from the SC190 to SC925 product family are used in industrial, automation and machine engineering and primarily in the areas of handling and automation.
TECHNICAL DATA
|
Energy capacity 225 in-lbs/cycle Energy capacity 300,000 in-lbs/h Effective weight min. (self-compensating) 20 lbs Effective weight max. (self-compensating) 100 lbs Effective weight min. (soft contact) 30 lbs Effective weight max. (soft contact) 90 lbs Hardness -3 Return Force min. 0.9 lbs Return Force max. 1.9 lbs Return Time 0.25 s Side Load Angle max. 5 ° Impact velocity range 0.5 ft/sec to 12 ft/sec. Other speeds on request. Operating temperature range 32 °F to 150 °F Mounting In any position Positive stop Integrated Material Outer body, Accessories: Steel corrosion-resistant coating; Piston rod: Hardened stainless steel Damping medium Oil, temperature stable
NOTEIf precise end position datum is required consider use of the stop collar type AH. SAFETY INFORMATIONExternal materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Do not paint the shock absorbers due to heat emission. ON REQUESTNickel-plated or weartec finish (seawater resistant) or other special finishes available to special order. Models without rod end button.
SALES DATAWeight F and R Weight S Weight Customs tariff number Country of origin |
