SC190M-7-HC ACE Controls Miniature Shock Absorbers
$0.00
| Stroke | 0.30 inch |
| M | M14x1.5 inch |
Miniature Shock Absorbers
SC190M-7-HC
Miniature self compensating shocks for high-speed applications
Self-Compensating
Energy capacity 175 in-lbs/cycle
Stroke 0.30 inch
Self-compensating shock absorbers react to changing energy conditions, without adjustment.
These miniature, self-compensating shock absorbers provide high-speed performance and reliability in a compact footprint. Applications include: Packaging equipment, slides, rotary actuators, small and medium robotics, machine tools, pick and place operations and more.
TECHNICAL DATA
|

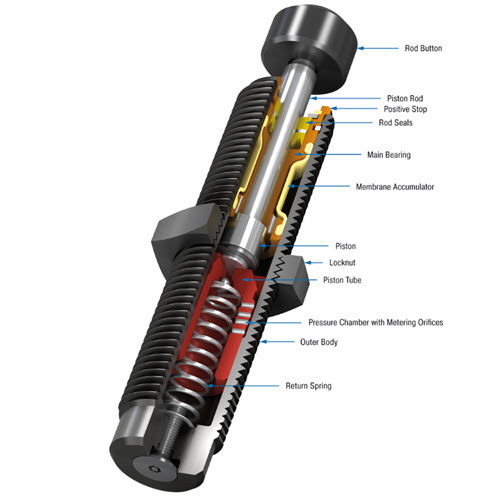

Energy capacity 175 in-lbs/cycle Energy capacity 443,000 in-lbs/h Effective weight min. 300 lbs Effective weight max. 3,400 lbs Hardness -7 Return Force min. 2.67 lbs Return Force max. 5.57 lbs Return Time 0.4 s Side Load Angle max. 2 ° Impact velocity range 0.16 ft/sec to 14.60 ft/sec Operating temperature range 32 °F to 150 °F Mounting In any position Positive stop Integrated Material Outer body: Steel corrosion-resistant coating; Main bearing: Brass; Piston rod: Steel hardened; Locknut, Accessories: Steel; Rolling diaphragm: Rubber (EPDM); Stretch diaphragm: Rubber (nitrile) Damping medium SF 96-500 and others
NOTEIf precise end position is required, consider use of the optional stop collar. SAFETY INFORMATIONExternal materials in the surrounding area can attack the accumulator and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Suitable for use in pressure chambers up to 102 psi. ON REQUESTFood grade oils, special threads available on request.
SALES DATAWeight F and R Weight S Weight Customs tariff number Country of origin |
