Miniature Shock Absorbers. SC300M-6-HC. Miniature self compensating shocks for high-speed applications

SC25-HC to SC650-HC high cycle shock absorbers are engineered for high-speed equipment applications.

These rugged performers are ideal for the packaging industry. They offer a short stroke, quick time through stroke and quick rod-ready time. In addition, these dependable self-compensating miniatures are capable of rapid repeat strokes.

The result is faster cycling for your equipment and gains in production time for you.

These miniature, self-compensating shock absorbers provide high-speed performance and reliability in a compact footprint. Applications include: Packaging equipment, slides, rotary actuators, small and medium robotics, machine tools, pick and place operations and more.

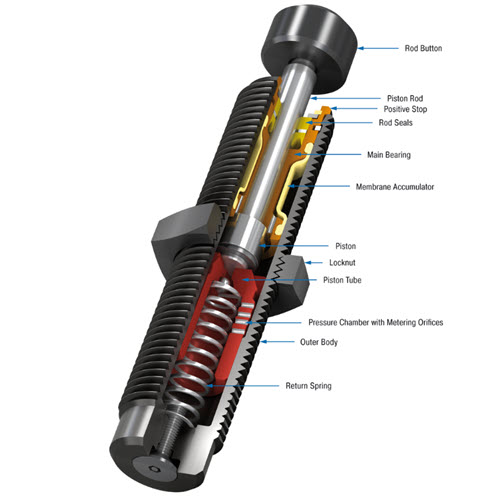

Material Outer body: Steel corrosion-resistant coating; Main bearing: Brass; Piston rod: Steel hardened; Locknut, Accessories: Steel; Rolling diaphragm: Rubber (EPDM); Stretch diaphragm: Rubber (nitrile)

Features:

• Stroke 0.33 inch MM20x1.5 inch
• Self-Compensating
• Energy capacity 650 in-lbs/cycle

Technical data:

• Energy capacity 650 in-lbs/cycle
• Energy capacity 400,000 in-lbs/h
• Effective weight min. 75 lbs
• Effective weight max. 300 lbs
• Hardness -6
• Return Force min. 2.63 lbs
• Return Force max. 3.91 lbs
• Return Time 0.2 s
• Impact velocity range 0.21 ft/sec to 8.79 ft/sec
• Operating temperature range 32 °F to 150 °F
• Mounting In any position
• Positive stop Integrated
• Damping medium SF 96-500 and others

NOTE: If precise end position is required, consider use of the optional stop collar.

SAFETY INFORMATION: External materials in the surrounding area can attack the accumulator and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Suitable for use in pressure chambers up to 102 psi.
