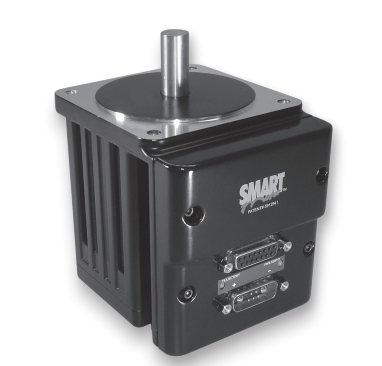

SM34165DT-DE AMIMATICS CLASS 5 SMARTMOTOR, NEMA 34, SHORT STACK, HIGH TORQUE, DRIVE ENABLE

SM34165DT-DE AMIMATICS CLASS 5 SMARTMOTOR, NEMA 34, SHORT STACK, HIGH TORQUE, DRIVE ENABLE

SPECIFICATIONS:

• Continuous Torque: 12.83 in-lb / 205 oz-in / 1.45 N-m
• Peak Torque: 30.00 in-lb / 480 oz-in / 3.39 N-m
• Nominal Continuous Power: 615 Watt
• No Load Speed: 5,100 RPM Max.
• Continuous Current* @ 4500 RPM 16.93 Amps
• Peak Power @ 3400 RPM 930 Watts
• Voltage Constant 8.9 V/kRPM
• Inductance 0.32 mH
• Encoder Resolution 8,000 Counts/Rev
• Rotor Inertia: 0.0142 oz-in-sec2  / 10.031 10-5 Kg-m2
• Weight: 5.5 lb  /  2.49 kg
• Shaft Diameter: 0.500 in  /  12.70 mm
• Shaft, Radial Load: 30 lb  /  13.61 kg
• Shaft, Axial Thrust Load: 3 lb  /  1.36 kg
