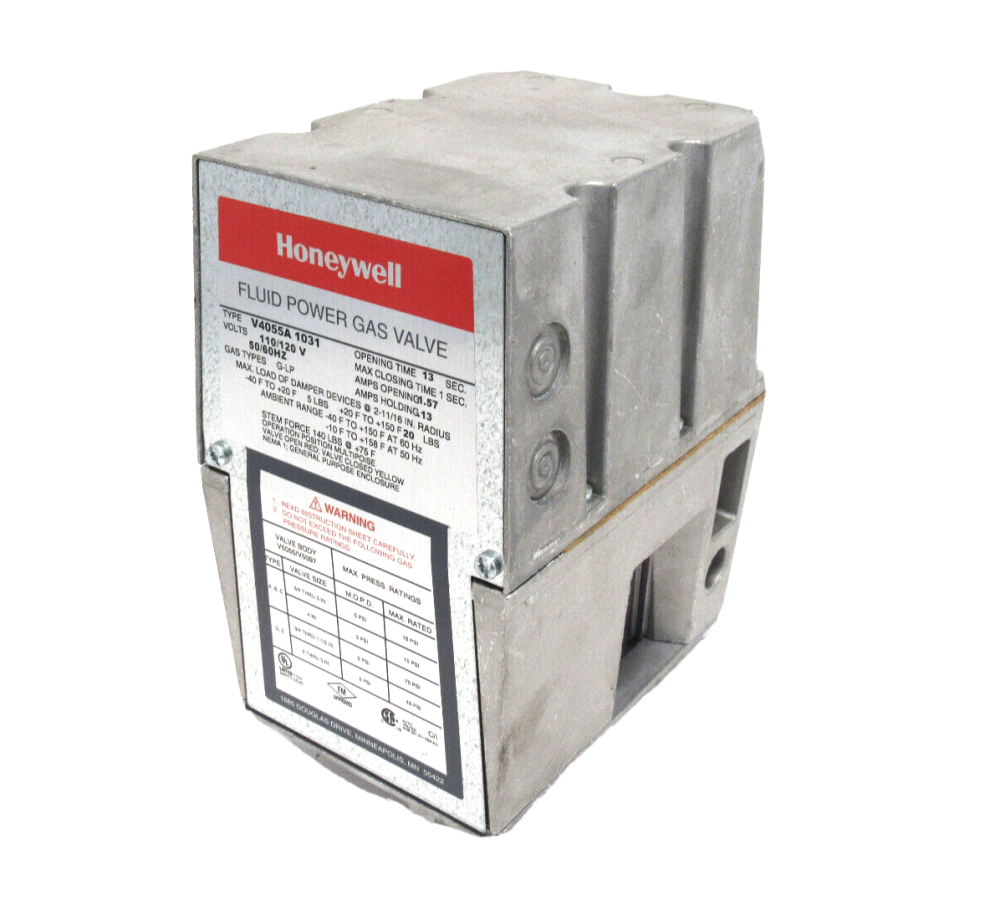

V4055A1031 HONEYWELL GAS VALVE ACTUATOR 120VAC, 13 SEC.

V4055A1031 HONEYWELL GAS VALVE ACTUATOR 120VAC, 13 SEC.
The V4055 Gas Valve Actuator, in combination with a VE5000a, V5055 or V5097 Gas Valve, controls the gas supply to commercial and industrial burners.

FEATURES

• The V4055 Actuator, when used with the VE5000a, V5097 or V5055 Valve, is rated for final safety shut off service.
• The V4055 Actuator can be used with the characterized guide model of the V5055 or V5097 Gas Valve to enhance light off smoothness.
• The standard model has an opening time of 26 seconds at 60 Hz or 32 seconds at 50 Hz. A fast-opening model is available with timings of 13 seconds at 60 Hz or 16 seconds at 50 Hz.
• Maximum closing time is one second, which meets code, standard and insurer requirements.

SPECIFICATIONS

• Maximum Closing Time: One second when de-energized.
• Ambient Operating Temperature Ratings:
  60 Hz Models: -40°F to +150°F (-40°C to +66°C).
  50 Hz, 50/60 Hz Models: -10°F to +158°F (-23°C to +70°C)
• Mounting:
  V4055 Actuator attaches directly to V5055/V5097 Valve with two sets of screws positioned 90 degrees apart. Combination is multipoise.
