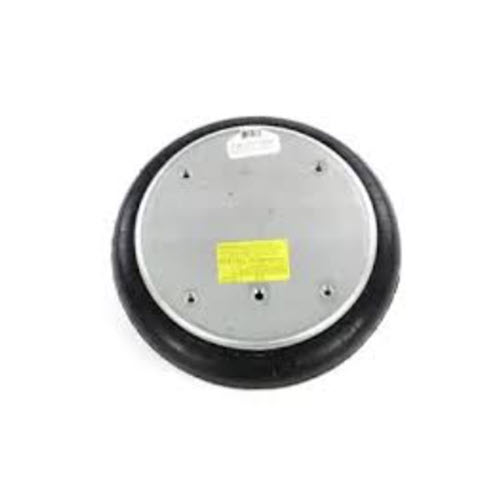

W01-358-7103 Firestone Airide Air Spring Single Convoluted 113

Firestone Airide replacement air spring W01-358-7103 improves your air suspension for a better quality ride and improved performance. Replaces Peerless 0550-00015. Firestone bellows number 113.

The Firestone W01-358-7103 air spring, also known as the style 113 single convoluted Airstroke actuator, is an industrial component used for actuation and vibration isolation.
Technical specifications
Based on data available from distributors such as Rolstoon and Applied, the technical specifications for the
Firestone W01-358-7103
 are as follows:Specification  Detail
Bellows type Two-ply, fabric-reinforced, single convoluted rubber.
Bellows number 113.
Design height 4.5–5.0 inches (11.4–12.7 cm).
Compressed height 2.12 inches (5.38 cm).
Maximum diameter 15.2 inches (38.6 cm).
Air inlet 1/4″ N.P.T., offset, with blind nuts.
Top plate Width: 11.31 inches (28.7 cm). Number: 3131/3134.
Bottom piston Width: 11.31 inches (28.7 cm). Number: 3130.
Load capacity • 20 psig: 1,942 lbf (8,638 N).
• 60 psig: 5,826 lbf (25,916 N).
• 90 psig: 8,739 lbf (38,879 N).
Weight 14.2 lbs (6.4 kg).
Operating temperature 57°C to -54°C.
Applications Industrial actuators and vibration isolators for presses, conveyors, lifts, and packaging machines.Note: The manufacturer states that this information is for reference only and not a warranty, either expressed or implied.
Equivalent part numbers
If you need to find an alternative to the
Firestone W01-358-7103
, several other manufacturers produce compatible parts: Goodyear: Part number 1B14-350.
Triangle: Part number 4442.
ContiTech: Part number 64523, FS530-14442.
Peerless: Part number 0550-00015
