1-802-04-00 ASS Automations

1-802-04-00 ASS Automations

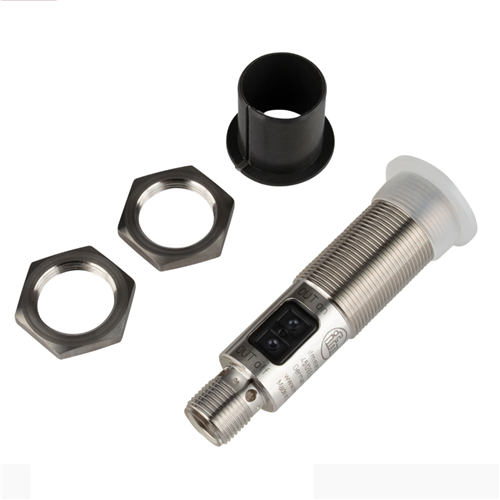

LRS 18 Photoelectric Sensor, cylindric.

Description:

• Optical part present control
• Mounting diameter 20mm
• Connection M12 4-pin
• Compatible to: KG 18-4; KW 18-4
• Model: square
• Poles: 4
• Signal output: PNP; NPN
• Part No.: 1-802-04-00

Accessories e.g.:

• Connector with cable KG 18
• Elbow connector KW 18

Specifications:

• Connection: –
• Connection thread: M12x1
• Degree of protection: IP 67
• Load current max.: 150 mA
• Material: Stainless Steel
• Operating voltage: 10…36V DC
• Power consumption: 25 mA
• Range: 2-800 mm
• Reach/detection range adjustable: yes
• Schaftdurchmesser: 20
• Sensitivity adjustment: yes
• Short circuit protection: ja
• Signal output: PNP
• Switching property: 20
• Switching property: bright or dark
• Type of light: red light
• Wavelength: 624 nm
• Weight: 48 g
