1-805-37-00 ASS Automations
$0.00
1-805-37-00 ASS Automations

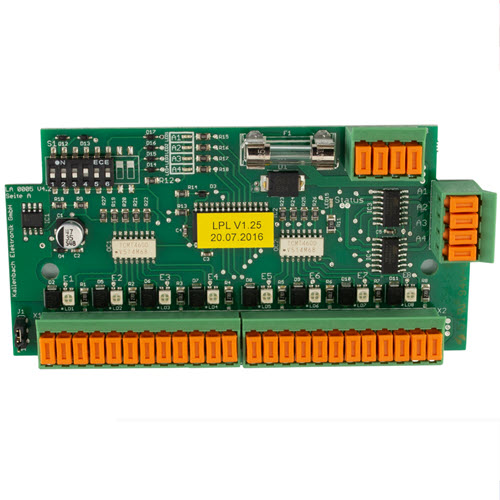

LPL / Logical Board, LPL-G(-S) / Logical Board with Enclosure
Description:
- Logical Board for summarizing input signals
- Up to 8 inputs and 4 outputs can be assigned
- Inputs: +24V
- Outputs: PNP / NPN
- State Indicator: (inputs, outputs and normal state) indicated by LEDs.
Detalles
1-805-37-00 ASS Automations
LPL / Logical Board, LPL-G(-S) / Logical Board with Enclosure
Unfortunately, the previous version of the Logical Board LPL is no longer available. The product description also remains the same, only the article number changes.
The successor items are expected to be available from October 2023
Part No. 1-805-17-00 replaced by 1-805-37-00
Part No. 1-805-18-00 replaced by 1-805-38-00
Part No. 1-805-19-00 replaced by 1-805-39-00
Description:
- Logical Board for summarizing input signals
- Up to 8 inputs and 4 outputs can be assigned
- Inputs: +24V
- Outputs: PNP / NPN
- State Indicator: (inputs, outputs and normal state) indicated by LEDs.
- 4 functions programmed and selectable via DIP switch
Accessories e.g.:
- Connector KG 12-8
Specifications:
- Anzahl Eingänge: 8
- Anzahl Verschraubungen: –
- Compatible to: –
- Connection: clip
- Connection thread: –
- Material: Plastic material
- Outputs: 4
- Signal output: closing contact
- Weight: 45 g
