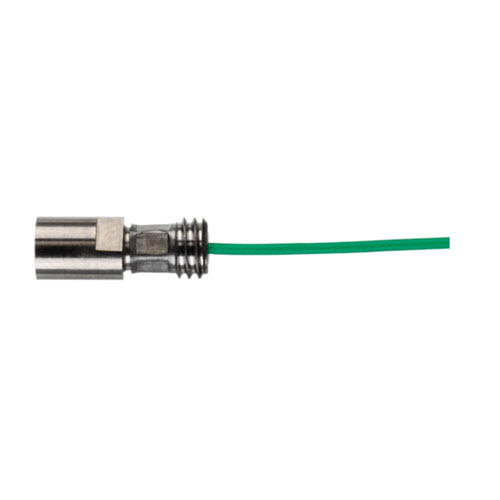

1666A4 Kistler Single wire connection cable

1666A4 Kistler Single wire connection cable

For cavity pressure sensors, 200°C, 5 m / 1666A4 ID: 18000593. Connection cable for multi-channel connectors and contact elements. The single-wire connection cable Type 1666A4 is for sensors with an M4 connector.

Features:

• Operation and installation Applications: Monitoring and control in injection molding
• Interfaces Connector type: M4 (positive)
• M4x0.35 pos. – open end
• Operating temperature: 0 … 200°C
• Connection cable for multi-channel connectors and contact elements

Specifications:

• Applications: control, for sensors
• Number of wire: 1 wire
• Temperature: Min.: 0 °C (32 °F), Max.: 200 °C (392 °F)
• Length: 5 m
