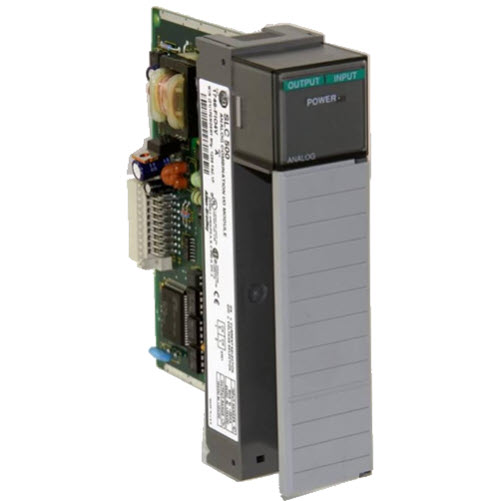

1746-FIO4V Allen Bradley
Fast Analog Combination module that features 2 Current input and 2 Voltage output channels. This module is exclusively used for the SLC 500 controller platform from Rockwell Automation.
Features:
- Fast analog combination module has 4 channels. In particular, it has 2 fast analog, differential voltage or current input channels, which are selectable by channel, and 2 voltage outputs which are grouped together.
- Input channels have a 0-20 mA input range, a maximum absolute input voltage of +/- 7.5V DC or of 7.5V AC RMS, a maximum absolute input current of 0-30 mA.
- Output channels of this module come with -10 to +10VDC -1 LSB. The 1746-FIO4V also comes with field wiring to a backplane isolation of 500V DC.
- This module makes use of a 16-bit two’s complement binary communication.
- The backplane current ratings are 55 mA at 5 V and 150 mA at 24V while the step response time of the 1746-FIO4V is 100 milliseconds in and 2.5 milliseconds out at 95%, while its update time is 512 milliseconds.
- Its resolution is 12 bits in and 14 bits out, and its bandwidth is 7 KHz.
- This module comes with a LED status indicator.
- Module compatible with a 14 AWG connecting cable.
- Non-condensing relative humidity is 5-95%.
Security Recommendations:
- When installing this module to the chassis, consider the effects of Ambient Temperature and Electrical Noise.
- install this module away from AC voltage or high level of DC voltage, away from the rack power supply or in a IO rack that is exposed in more ambient temperature.
Specifications:
- Manufacturer Rockwell Automation
- Brand Allen-Bradley
- Part Number/Catalog No. 1746-FIO4V
- Series SLC 500
- Inputs 2
- Module Type Analog Combination Module
- Outputs 2
- No. of Inputs Two (2)
- Backplane Current (5 Volts) 55 milliamps
- Input Signal Type Voltage / Current
- Backplane Current (24 Volts) 150 milliamps
- Input Signal Range 0…20 mA (nom); 0…30 mA (max)
- B 7 kilohertz
- Output Signal Type Voltage
- Output Signal Range –10 … 10V – 1 LSB (normal)
- Backplane Current (5 Volts) 55 milliamps; (24 Volts) 150 milliamps
- Update Time 512 microseconds
- Resolution 12 bits in, 14 bits out
- Step Response 100 milliseconds in, 2.5 milliseconds out
