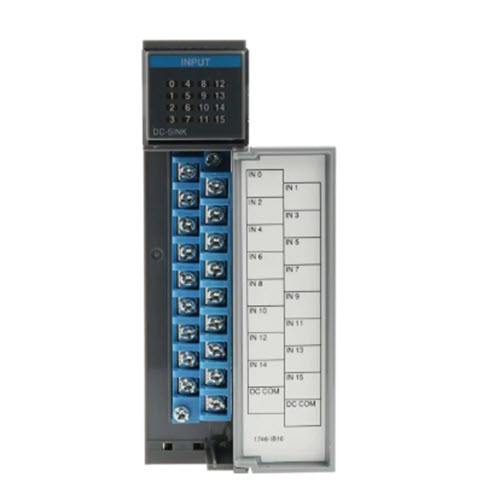

1746-IB16 Allen-Bradley

1746-IB16 Allen-Bradley

Is a medium density DC input module that is used to interface with signal devices that delivers a signal voltage range of 10-30VDC towards each of the input channel of the module.

Features:

• 16 input channels, nominal input voltage of 24VDC, grouped into 1 input group.
• This input module is mounted to any available I/O slot of the 1746-Chassis and draws backplane current of 0.05 A @ 5VDC.
• Supports sinking wiring configuration only.
• Used to interface with electrical components such as switches including limit, proximity, push button devices as well as auxiliary contacts of relays, contactors and other electronic devices.
• Each of the input channels exhibits a common signal delay duration of 8 ms for both On and OFF transitions, with maximum OFF-state voltage of 5VDC and maximum OFF-state current of 1 mA while the module’s nominal input current is 8 mA @ 24VDC.
• The number of installation instances varies according to the SLC500 CPU installed.
• Specifically, depending on the number of I/O supported by the CPU memory.
• This module may also be installed locally, along the rack where the SLC 500 CPU is installed or in a Distribute I/O chassis, along a 1746 Communication adapter such as Remote I/O (RIO) and Ethernet adapter modules.
• This module comes with status LED indicators that provided indications to the actuation of each of the input channels.
• Maximum signal delay time of 8ms for both ON and OFF transitions while the module’s maximum drop voltage of 5V DC in the OFF state.
• It has a maximum leakage current of 1mA and has a nominal input current of 8mA at 24V DC across the entire module.

Specifications:

• Manufacturer Rockwell Automation
• OFF state current, max 1 mA
• OFF State voltage, max 5.0V DC
• Thermal Dissipation per channel .20 Watts
• Backplane Current 0.050 A
• Signal Delay, ON transition 8 ms
• Input Current, nominal 8mA @24VDC
• Input Voltage range 10-30VDC
• Input Voltage 24 Volts DC
• No. of Inputs 16; Sinking input
• Brand Allen-Bradley
• Part Number/Catalog No. 1746-IB16
• Series SLC 500
• Module Type Digital DC Sinking Input
• Voltage Range 10-30 Volts DC Sink
• Inputs 16
• Backplane Current (5 Volts DC) 85 milliamps
• Signal delay 8 milliseconds
• Off State Current 1 milliamps
• Applications General Purpose DC Inputs
• I/O Connection 1746-HT and 1746-HCA
• Step Response 100 milliseconds in, 2.5 milliseconds out
• UPC 10662468067048
• UNSPSC 32151705
