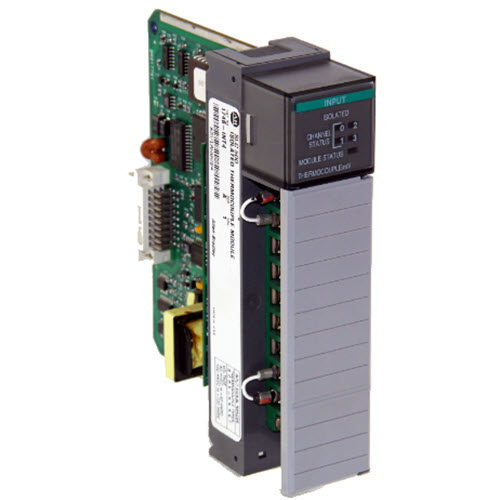

1746-IN16 Allen Bradley

1746-IN16 Allen Bradley

Input modules are used by the Programmable Logic Controller (PLC) to interface with the process. The actuation of each individual channel represents the actual state of device.

Features:

• Is a 24 VDC / 24VAC Sinking input module.
• 16 sinking channels that operates with 10-30 VDC and VAC voltage ranges.
• Each channel of this module has a dedicated LED indicator to provide visual feedback if the channel has active power or not. 3
• LEDs may also be used as troubleshooting reference.
• This module occupies a single slot in any 1746 SLC Chassis.
• Install at chassis together with the PLC Processor or to an SLC expansion slot.
• For AC voltage, ON to OFF and OFF to ON transitions exhibits 25 ms signal delay while for DC supply voltage the experienced signal delay for ON to OFF and OFF to ON transitions are both 15 ms.

Specifications:

• Manufacturer Rockwell Automation
• Brand Allen-Bradley
• Part Number/Catalog No. 1746-IN16
• Series SLC 500
• Operating Voltage 24 Volts AC/DC Sink
• Module Type Digital DC Input Module
• Voltage Range 24 VDC / 24 VAC
• Inputs 16
• Signal delay 15 or 25 milliseconds
• Backplane Current (5 Volts DC) At 5 Volts DC: 0.085 A;
• Off State Current 1 milliamps
• Signal delay, DC Voltage 15 ms
• Applications General Purpose 125 Volts DC Inputs
• Signal delay, AC Voltage 25 ms
• Nominal Input Current 8 mA @ 24V DC; 8 mA @ 24V AC
• I/O Connection 1746-HT and 1746-HCA
• Watts Per Point 0.35
• Step Response 100 milliseconds in, 2.5 milliseconds out
• Minimum Watts 0.425
• UPC 10662468092743
• Total Watts 6
