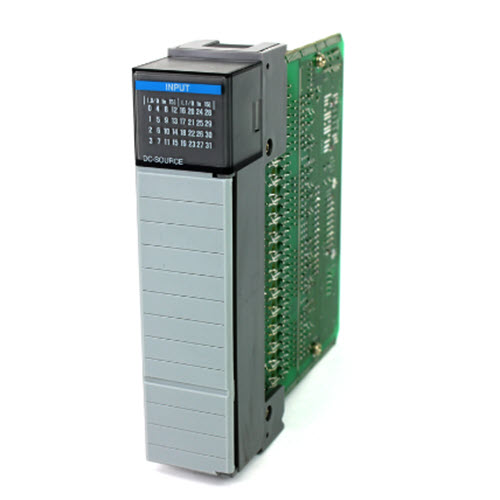

Is an SLC 500 32 Channel Digital Input Module by Allen-Bradley. It is a 24V DC current sourcing input module with 32 inputs and 8 points per fused common that is fixed in any slot of the SLC 500 chassis.

Features:

• It has an operating voltage range between 15 and 30V DC at 50 °C and a range of 15 and 26.4V DC at 60 °C
• Backplane draw current of 0.05A at 5V DC.
• Non-replaceable electronically-fused common with the fuse rated at 2.5A and it provides a 60s 1500V AC-tested isolation from the backplane.
• The signal delay on the input points has a maximum delay time of 3ms for both the ON and OFF states.
• Maximum OFF-state current of 1.5mA.
• Minimum ON-state voltage of 15V DC
• Maximum OFF-state voltage of 5V DC.
• Nominal input current of 5.1mA per point and the maximum heat dissipation on each point is 0.2W with an aggregate of 6.65W for the whole module.

Specifications:

• Manufacturer Rockwell Automation
• Agency Certification UL / C-UL listed Class I, Division 2, Groups A, B, C, D CE marked for all applicable directives C-Tick
• marked for all applicable acts
• Relative Humidity 5 to 95% without condensation
• Operating Temperature 0…+60 °C (+32…+140 °F)
• Storage Temperature -40°C to +85°C (-40°F to +185°F)
• Input current: 5.1 mA at 24V dc
• Off-state current, max: 1.5 mA
• Off-state voltage, max: 5.0V dc
• On-state Voltage, min.: 15.0V dc
• Input voltage range: 15 to 30V dc at 50° C; 15 to 26.4V dc at 60° C
• No. of groups: 4
• Brand Allen-Bradley
• Part Number/Catalog No. 1746-IV32
• Series SLC 500
• Module Type 24VDC input module
• Signal delay ON = 3 ms; OFF = 8 ms
• Voltage Range 15-30 Volts DC Source
• Inputs 32
• Backplane Current (5 Volts DC) 106 milliamps
• Off State Current 1 milliamp
• Applications General Purpose DC Inputs
• Applications Combination 120 Volts AC I/O
• UPC 10662468092767
