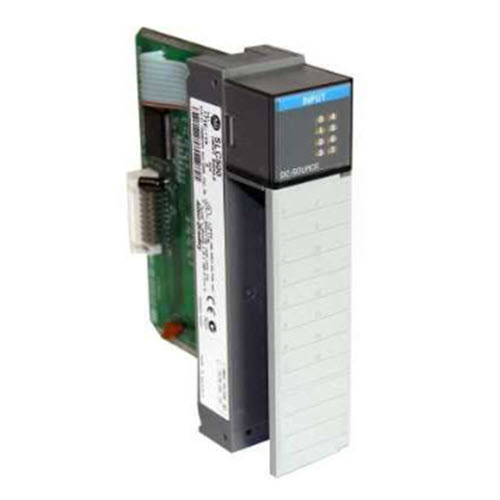

The Allen-Bradley 1746-IV8 is a 24 Volt DC sourcing input module. This module is used to directly interface signaling devices, allowing the SLC 500 control system to recognize change of state for use in the execution of the user program.

Features:

• Its requires use of 14 AWG (2 millimeter) cables for signal termination It is also provided with LED indicators on the front.
• The operating voltage range of this module is from 10 to 30 Volts DC while the backplane current of this module at 5 Volts is 50 mA, and 0mA at 24 Volts.
• In its “off” state, the 1746-IV8 has a maximum input voltage of 5 Volts DC.
• The maximum signal ON delay of this module is 8 milliseconds
• the maximum signal OFF delay of is 8 milliseconds.

Specifications:

• Manufacturer Rockwell Automation
• Brand Allen-Bradley
• Relative Humidity 5 to 95% without condensation
• Operating Temperature 0…+60 °C (+32…+140 °F)
• Storage Temperature -40°C to +85°C (-40°F to +185°F)
• Input current 8 mA @ 24V DC, nom
• Off-state current, max 1 mA
• Off-state voltage, max 5.0V DC
• Input voltage range: 10-30 VDC
• No. of groups: 1
• Part Number/Catalog No. 1746-IV8
• Module Type 24VDC input module
• Signal delay ON = 8 ms; OFF = 8 ms
• Series SLC 500
• Voltage Range 10-30 Volts DC Source
• Inputs 8
• Backplane Current (5 Volts DC) 50 milliamps
• Off State Current 1 milliamps
• Applications General Purpose DC Inputs
• Applications Combination 120 Volts AC I/O
