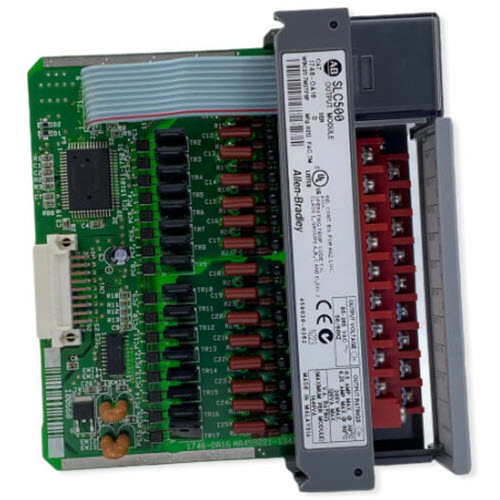

1746-OA16 Allen Bradley

1746-OA16 Allen Bradley

is a Digital AC output module designed for use with the SLC500 controller family. This output modules provides 120-240VAC nominal voltage output with voltage range of 85-264VAC at a frequency of 47-63 Hz.

Features:

• It may be installed as a local and remote I/O module of any SLC500 Programmable Logic Controllers (PLC) processor or CompactLogix and ControlLogix Programmable Automation Controllers (PAC).
• There is no limit to the number of installation instances of this module as long as the system power supply is capable of supplying the required current of each module installed in the same chassis.
• Current draw of 0.316 A.
• Occupies a single slot of the controller chassis and consumes 16-bit I/O memory.
• Two (2) output groups with each group having Eight (8) channels.
• Each channel of this module has an output Current of 0.50 A @ 30 °C (86 °F) and 0.25 A @ 60 °C (140 °F) with continuous output per module of 8.0 A @ 30 °C (86 °F) and 4.0 A @ 60 °C (140 °F).
• removable terminal blocks that eliminate the need to disconnect wires when replacing any of the modules.

Specifications:

• Manufacturer Rockwell Automation
• Continuous current per module, max 8.0 A @ 30 °C (86 °F) 4.0 A @ 60 °C (140 °F)
• Continuous current per point 0.50 A @ 30 °C (86 °F) 0.25 A @ 55 °C (131 °F)
• Backplane Current at 5.1 Volts 0.370 A
• Load Current 10 mA
• OFF state leakage current 2 mA
• Output Delay Time, ON to OFF 1 ms
• Output Delay Time, OFF to ON 11.0 ms
• Operating Voltage Range 85-264 VAC
• Output Voltage 120/240 VAC output
• No. of Outputs Sixteen (16) outputs
• Brand Allen-Bradley
• Part Number/Catalog No. 1746-OA16
• Series SLC500
• Module Type Digital AC Output Module
• Voltage Range 85 to 265 Volts AC
• Outputs 16
• Current/Output at 30 degrees Celsius 0.5 Amps
• Current/Output at 60 degrees Celsius 0.25 Amps
• Backplane Current (5 Volts DC) 370 milliamps
• Current/Module (30 degrees Celsius) 8 Amps
• Applications General Purpose
• Step Response 60 milliseconds in, 2.5 milliseconds out
• Ambient Operating Temperature 32 to 140 degrees Fahrenheit
• UPC 10662468067062
• UNSPSC 32151705
